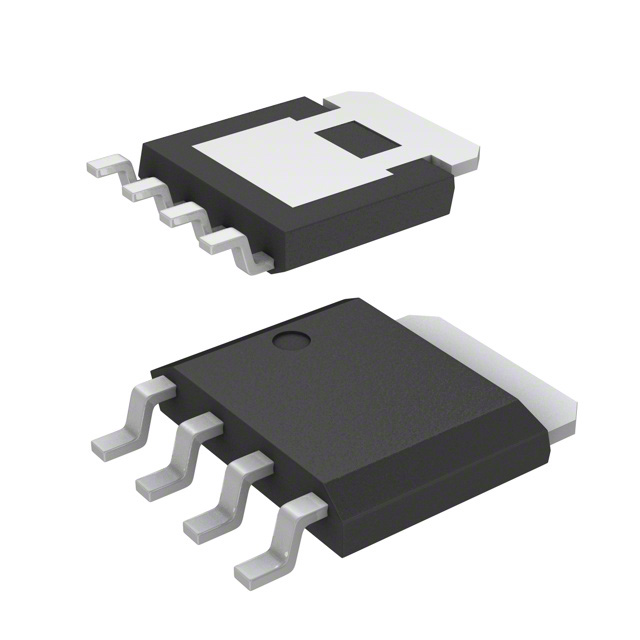

HAT2172H-EL-E
MOSFET N-CH 40V 30A LFPAKManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 30A (Ta) 20W (Tc) Surface Mount LFPAK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-100, SOT-669 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 15A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 20W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Supplier Device Package | LFPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2420 pF @ 10 V |
