HAT1043M-EL-E
4.4A, 20V, P-CHANNEL MOSFETManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More

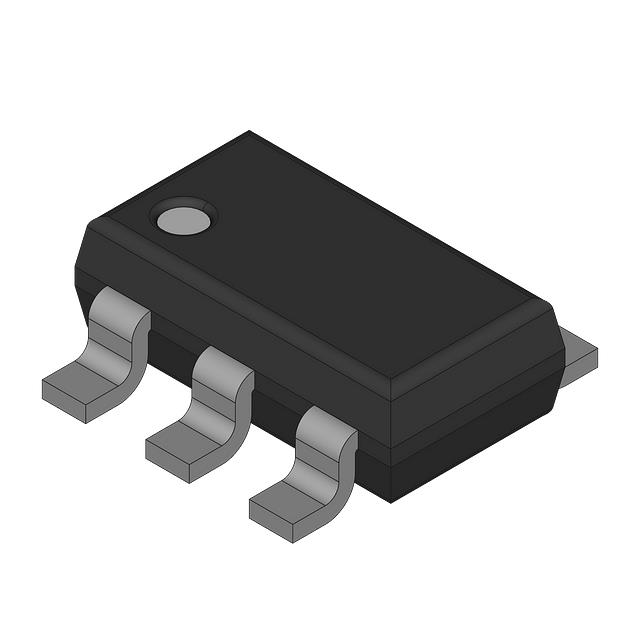

P-Channel 20 V 4.4A (Ta) 1.05W (Ta) Surface Mount 6-TSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.05W (Ta) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 6-TSOP |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 750 pF @ 10 V |
