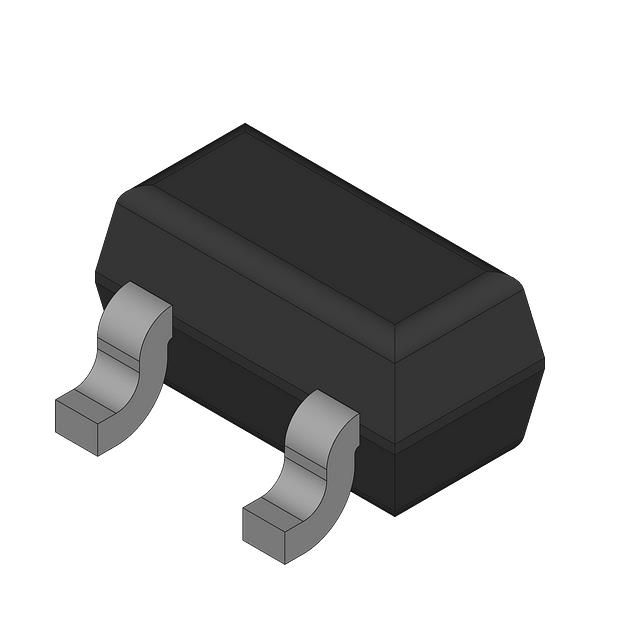

2SK3107-T1-A
MOSFET N-CH 30V 100MA SC75-3 USMManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Renesas Electronics Corporation's 2SK3107-T1-A is an N-Channel MOSFET designed for surface mount applications. This component features a Drain-to-Source Voltage (Vdss) of 30V and a continuous Drain current (Id) of 100mA at 25°C (Ta). The device exhibits a typical On-Resistance (Rds On) of 5 Ohms at 10mA and 10V Vgs. With an input capacitance (Ciss) of 9pF maximum at 3V, it is suitable for various electronic circuits. The threshold voltage (Vgs(th)) is a maximum of 1.8V at 10µA. This MOSFET is supplied in a SC-75-3, USM package, also known as SC-75 or SOT-416. It finds application in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-75, SOT-416 |
| Mounting Type | Surface Mount |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 10mA, 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.8V @ 10µA |
| Supplier Device Package | SC-75-3, USM |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 9 pF @ 3 V |
