2SK1580-T1-A
MOSFET N-CH 16V 100MA SC70-3 SSPManufacturer: Renesas Electronics Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More

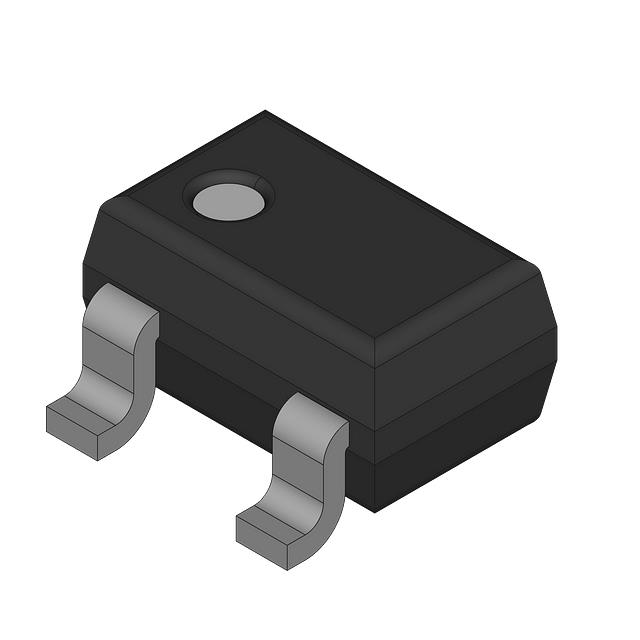

Renesas Electronics Corporation 2SK1580-T1-A is an N-Channel MOSFET designed for surface mount applications. This device features a drain-source voltage (Vdss) of 16V and a continuous drain current (Id) of 100mA (Tc) at 25°C. The ON-resistance (Rds On) is a maximum of 10 Ohms at 1mA drain current and 4V gate-source voltage. Input capacitance (Ciss) is typically 18 pF at 3V drain-source voltage. The MOSFET utilizes Metal Oxide technology and is housed in an SC-70-3, SSP, Miniature Mini Mold package, also known as SC-70 or SOT-323. The threshold voltage (Vgs(th)) is a maximum of 1.6V at 10µA gate current. This component is commonly found in consumer electronics and industrial control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Tc) |
| Rds On (Max) @ Id, Vgs | 10Ohm @ 1mA, 4V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.6V @ 10µA |
| Supplier Device Package | SC-70-3, SSP, Miniature Mini Mold |
| Drain to Source Voltage (Vdss) | 16 V |
| Input Capacitance (Ciss) (Max) @ Vds | 18 pF @ 3 V |
