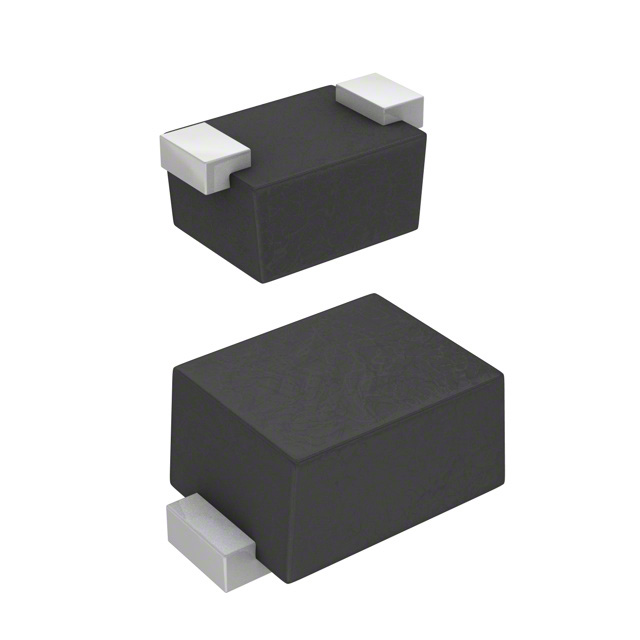

HSL226KRF-E
DIODE SCHOTTKY 25V 50MA 2EFPManufacturer: Renesas Electronics Corporation
Categories: Single Diodes
Quality Control: Learn More
Renesas Electronics Corporation Schottky Diode, part number HSL226KRF-E, is a 25V, 50mA surface mount component designed for signal rectification. This diode features a low forward voltage of 380 mV at 5 mA and a reverse leakage current of 450 nA at 20 V. With a junction capacitance of 2.8 pF at 1V and 1MHz, it is suitable for high-frequency applications. The compact 2-EFP package with flat leads ensures efficient board space utilization. Operating up to a maximum junction temperature of 125°C, the HSL226KRF-E is utilized in various electronic systems, including telecommunications and consumer electronics.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 2.8pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 50mA |
| Supplier Device Package | 2-EFP |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 25 V |
| Voltage - Forward (Vf) (Max) @ If | 380 mV @ 5 mA |
| Current - Reverse Leakage @ Vr | 450 nA @ 20 V |
