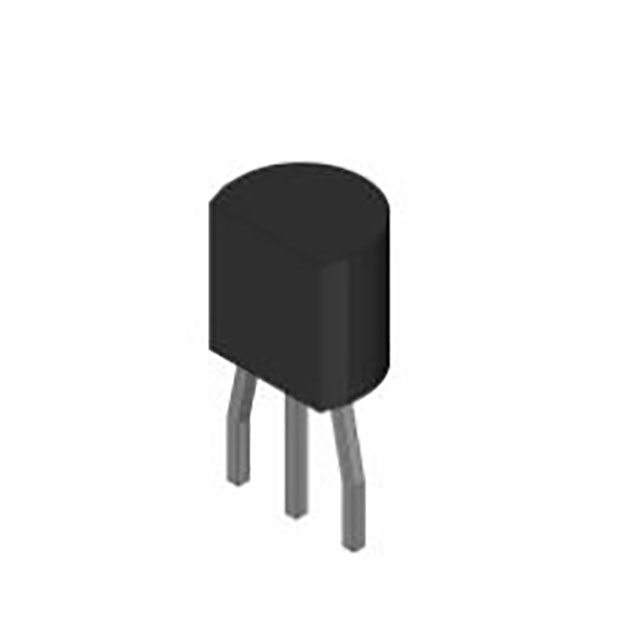

2SA953-A
SMALL SIGNAL BIPOLAR TRANS PNPManufacturer: Renesas Electronics Corporation
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 60 V 300 mA 100MHz 600 mW Through Hole TO-92
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 30mA, 300mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 50mA, 1V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | TO-92 |
| Grade | - |
| Current - Collector (Ic) (Max) | 300 mA |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 600 mW |
| Qualification | - |
