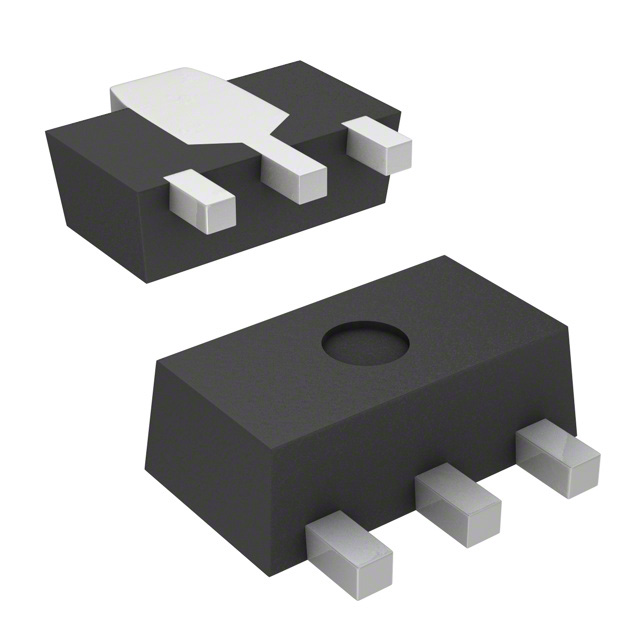

CR05AS-8-BT14#F01
SCR 400V 790MA UPAKManufacturer: Renesas Electronics Corporation
Categories: SCRs
Quality Control: Learn More
SCR 400 V 790 mA Sensitive Gate Surface Mount UPAK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A @ 60Hz |
| Current - On State (It (AV)) (Max) | 500 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.9 V |
| Current - Off State (Max) | 100 µA |
| Supplier Device Package | UPAK |
| Current - On State (It (RMS)) (Max) | 790 mA |
| Voltage - Off State | 400 V |
Request a Quote
Clients Also Buy
CR12FM-12B#BB0
SCR 600V 18.8A TO220FP

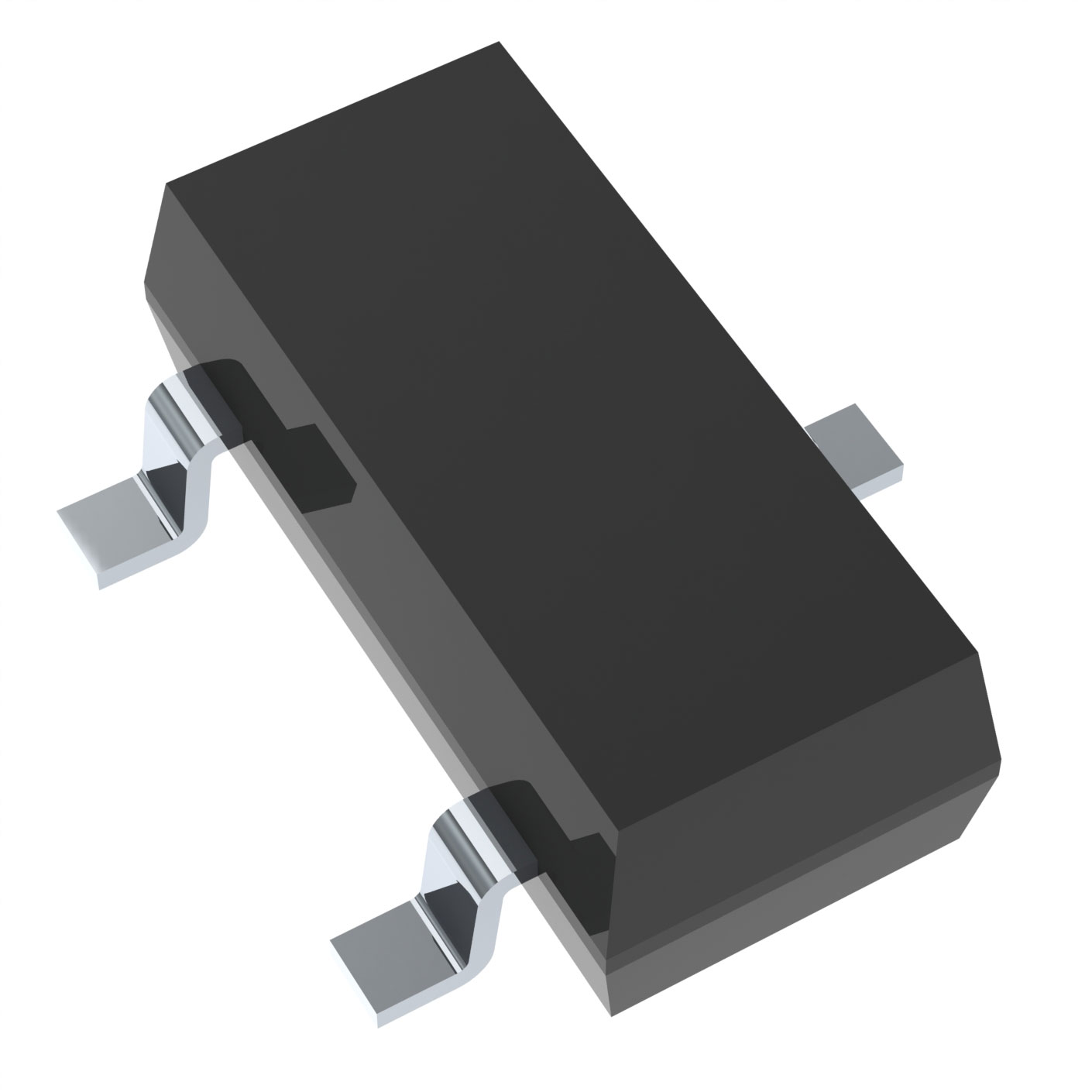

CR05BS-8-T13#F10
