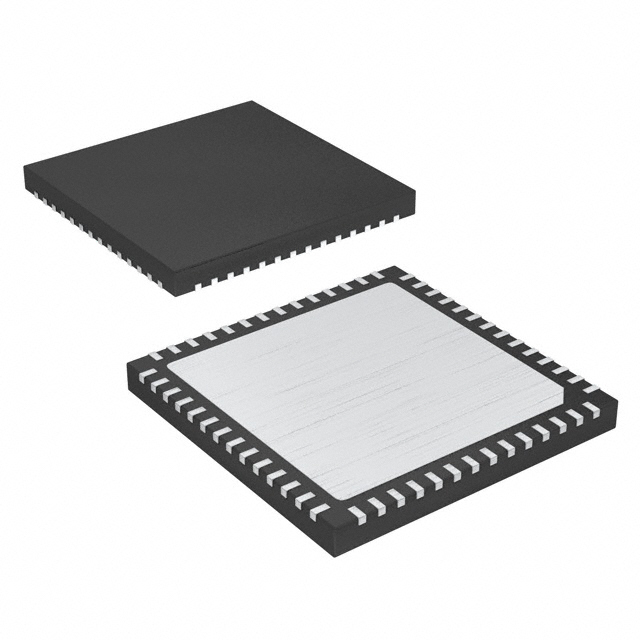

DA14582-01KA2

IC RF TXRX+MCU BLUETOOTH 56WFQFN

Manufacturer: Renesas Electronics Corporation

Categories: RF Transceiver ICs

Quality Control: Learn More

The Renesas Electronics Corporation DA14582-01KA2 is a Bluetooth v4.2 radio transceiver with an integrated microcontroller, designed for 2.4GHz operation. This device offers a transmit power of 0dBm and a receive sensitivity of -93dBm, with typical receiving and transmitting currents of 3.7mA and 3.4mA respectively. The DA14582-01KA2 features 29 GPIO pins and on-chip memory including 32kB OTP, 84kB ROM, and 50kB SRAM. It supports serial interfaces such as I2C, SPI, and UART. Supplied in a 56-WFQFN Exposed Pad (56-aQFN 8x8) package for surface mounting, this component operates within a temperature range of -20°C to 60°C and requires a supply voltage of 1.8V. It is commonly utilized in consumer electronics and wearable devices.

Additional Information

Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / Case56-WFQFN Exposed Pad
Sensitivity-93dBm
Mounting TypeSurface Mount
Frequency2.4GHz
Memory Size32kB OTP, 84kB ROM, 50kB SRAM
TypeTxRx + MCU
Operating Temperature-20°C ~ 60°C
Voltage - Supply1.8V
Power - Output0dBm
ProtocolBluetooth v4.2
Current - Receiving3.7mA
Data Rate (Max)-
Current - Transmitting3.4mA
Supplier Device Package56-aQFN (8x8)
GPIO29
Modulation-
RF Family/StandardBluetooth
Serial InterfacesI2C, SPI, UART
ProgrammableNot Verified
