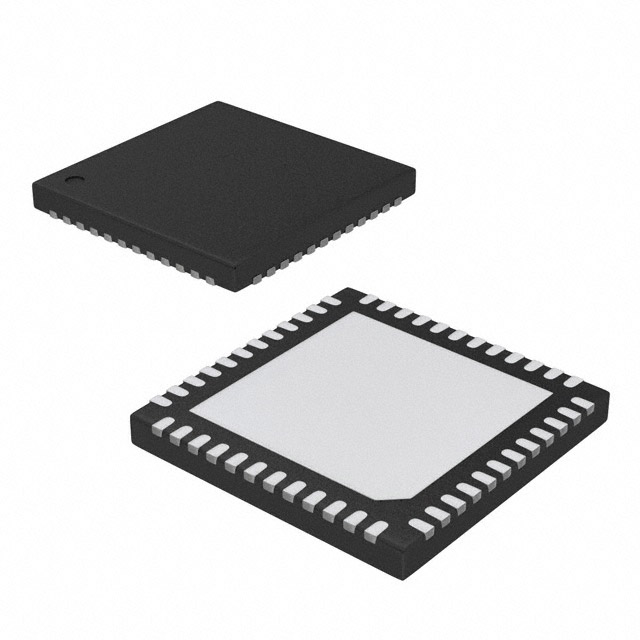

DA14580-01A31
IC RF TXRX+MCU BLE 48QFNManufacturer: Renesas Electronics Corporation
Categories: RF Transceiver ICs
Quality Control: Learn More
The Renesas Electronics Corporation DA14580-01A31 is a highly integrated Bluetooth v4.2 System-on-Chip (SoC) designed for low-power wireless applications. This device combines a Bluetooth Low Energy (BLE) radio transceiver with a powerful ARM Cortex-M0 microcontroller, enabling efficient data transmission and complex processing within a single package. Operating at 2.4GHz, it offers a transmit power of 0dBm and a receive sensitivity of -93dBm. On-chip memory includes 32kB of OTP, 84kB of ROM, and 50kB of SRAM, supported by 32 GPIO pins. Serial interfaces such as I2C, SPI, and UART facilitate seamless integration with other system components. The DA14580-01A31 is supplied in a 48-VFQFN Exposed Pad package, suitable for surface mounting and typically found in consumer electronics, wearables, and industrial automation. Typical current consumption during receiving is 3.7mA, and during transmitting is 3.4mA, supporting extended battery life.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 48-VFQFN Exposed Pad |
| Sensitivity | -93dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Power - Output | 0dBm |
| Protocol | Bluetooth v4.2 |
| Current - Receiving | 3.7mA |
| Data Rate (Max) | - |
| Current - Transmitting | 3.4mA |
| Supplier Device Package | 48-QFN (6x6) |
| GPIO | 32 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
