UPG2413T6Z-E2-A
IC RF SWITCH SP3T 3GHZ 8TSONManufacturer: Renesas Electronics Corporation
Categories: RF Switches
Quality Control: Learn More
Renesas Electronics Corporation UPG2413T6Z-E2-A is a Single Pole Triple Throw (SP3T) RF switch designed for high-frequency applications up to 3 GHz. This reflective switch offers a 50 Ohm impedance characteristic, critical for maintaining signal integrity in RF signal paths. The UPG2413T6Z-E2-A is suitable for demanding wireless infrastructure and consumer electronics, particularly within 802.11b/g standards. Its 8-TSON package with an exposed pad ensures effective thermal management. The component operates within an ambient temperature range of -45°C to 85°C, with a typical P1dB of 33dBm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-XFDFN Exposed Pad |
| Impedance | 50Ohm |
| Circuit | SP3T |
| RF Type | 802.11b/g |
| Operating Temperature | -45°C ~ 85°C |
| Voltage - Supply | - |
| Topology | Reflective |
| P1dB | 33dBm (typ) IP1dB |
| Supplier Device Package | 8-TSON |
| IIP3 | - |
Request a Quote
Clients Also Buy

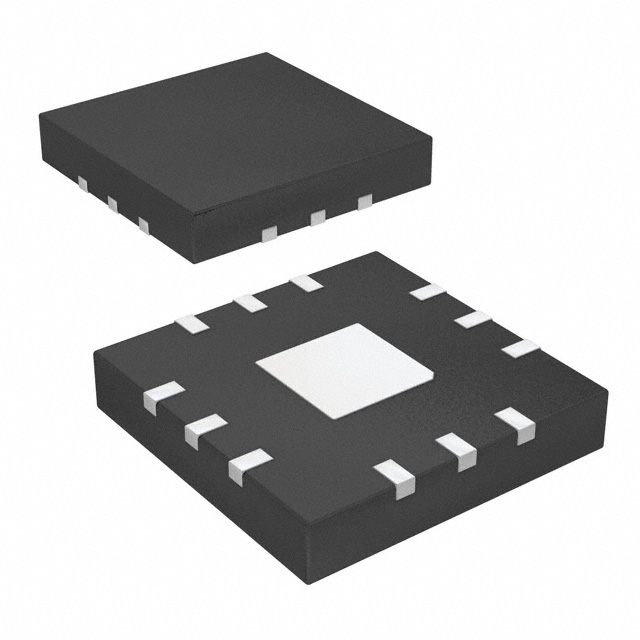

F2972NEGK8
