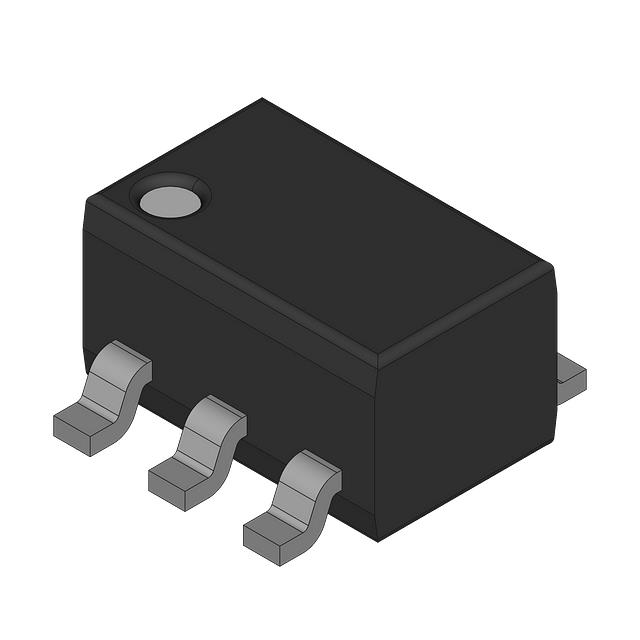

UPC2711TB-E3-A
IC AMP CELL 2.7GHZ-3GHZ SOT363Manufacturer: Renesas Electronics Corporation
Categories: RF Amplifiers
Quality Control: Learn More
Renesas Electronics Corporation UPC2711TB-E3-A is a surface mount RF amplifier IC designed for operation in the Cellular, DBS, and PCS frequency bands, specifically from 2.7GHz to 3GHz. This component offers a typical gain of 11dB to 16.5dB with a noise figure ranging from 5dB to 6.5dB. The device operates from a supply voltage of 4.5V to 5.5V and draws a current between 9mA and 15mA. Supplied in a SOT-363 package, the UPC2711TB-E3-A is suitable for applications in wireless communication infrastructure and mobile device front-ends.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Frequency | 2.7GHz ~ 3GHz |
| RF Type | Cellular, DBS, PCS |
| Voltage - Supply | 4.5V ~ 5.5V |
| Gain | 11dB ~ 16.5dB |
| Current - Supply | 9mA ~ 15mA |
| Noise Figure | 5dB ~ 6.5dB |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | SOT-363 |
