ICM7556IPDZ
IC OSC TIMER DUAL 1MHZ 14DIPManufacturer: Renesas Electronics Corporation
Categories: Programmable Timers and Oscillators
Quality Control: Learn More

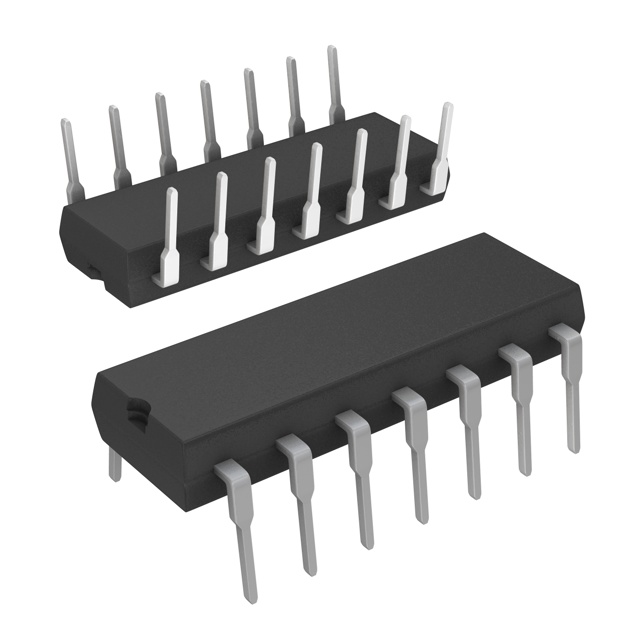

Renesas Electronics Corporation ICM7556IPDZ is a dual timer/oscillator IC, a 555-type component operating up to 1MHz. This through-hole device is housed in a 14-PDIP package, measuring 0.300" (7.62mm). It offers a wide supply voltage range of 2V to 18V and a low supply current of 120 µA. The ICM7556IPDZ is suitable for applications in industrial automation, consumer electronics, and test and measurement equipment. The operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Frequency | 1MHz |
| Type | 555 Type, Timer/Oscillator (Dual) |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 2V ~ 18V |
| Count | - |
| Supplier Device Package | 14-PDIP |
| Current - Supply | 120 µA |
Request a Quote
