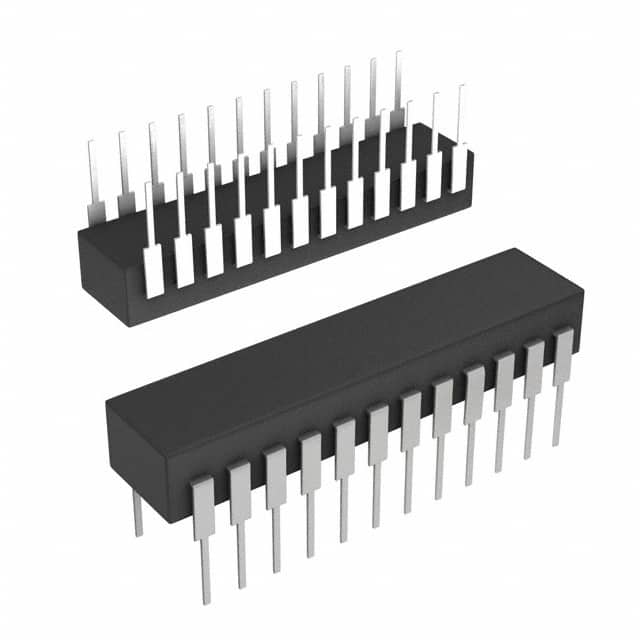

CP82C54Z
IC OSC PROG TIMER 8MHZ 24DIPManufacturer: Renesas Electronics Corporation
Categories: Programmable Timers and Oscillators
Quality Control: Learn More
Renesas Electronics Corporation's CP82C54Z is a programmable timer IC, operating at 8MHz and featuring a 24-PDIP package. This component offers a supply voltage range of 4.5V to 5.5V and draws a nominal current of 10mA. Designed for through-hole mounting, it operates reliably within a temperature range of 0°C to 70°C. The 24-DIP (0.600", 15.24mm) package facilitates straightforward integration into existing designs. This device finds application in industrial automation, consumer electronics, and data acquisition systems requiring precise timing control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Frequency | 8MHz |
| Type | Programmable Timer |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Count | - |
| Supplier Device Package | 24-PDIP |
| Current - Supply | 10 mA |
