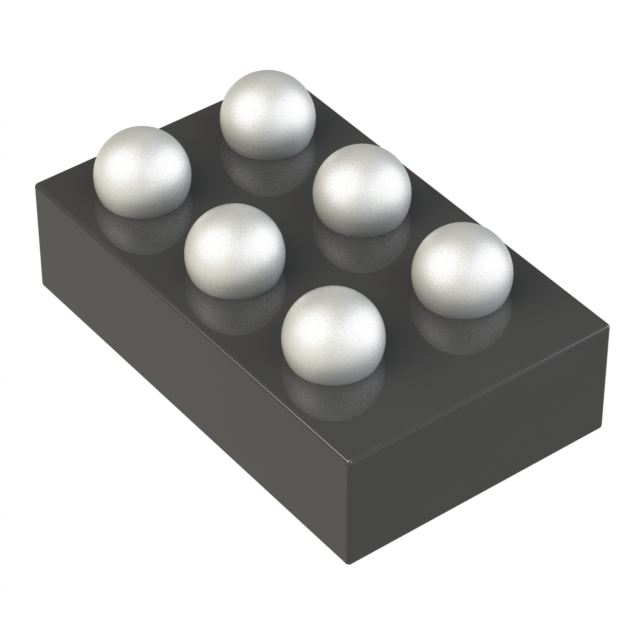

SLG59M1746C
IC PWR SWITCH N-CHAN 1:1 6WLCSPManufacturer: Renesas Electronics Corporation
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 1A 6-WLCSP (0.71x1.16)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFBGA, WLCSP |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 17.6mOhm |
| Input Type | CMOS |
| Voltage - Load | 0.25V ~ 1.5V |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WLCSP (0.71x1.16) |
| Fault Protection | - |
