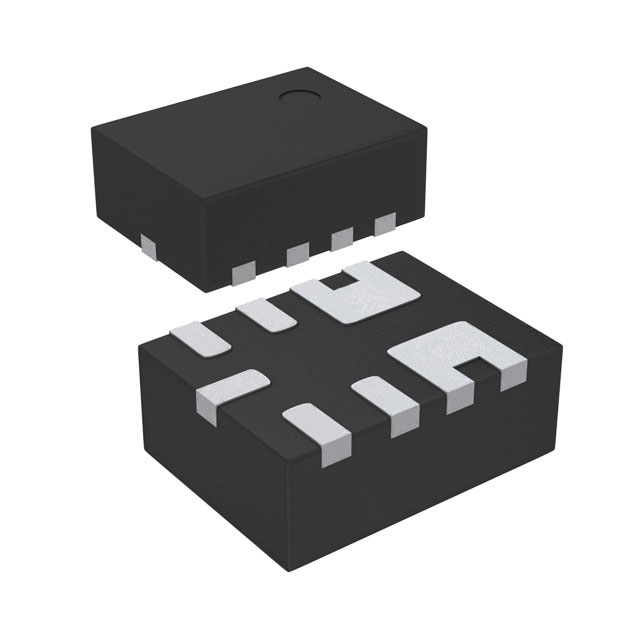

SLG59M1470V
IC PWR SWITCH N-CHAN 1:1 9TDFNManufacturer: Renesas Electronics Corporation
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 6A 9-FC-TDFN (1.5x2)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-PowerWFDFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 7.4mOhm |
| Input Type | CMOS |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 9-FC-TDFN (1.5x2) |
