M665-02-AD-ALJ
XTAL OSC VCSO 3.3V 6SMDManufacturer: Renesas Electronics Corporation
Categories: Pin Configurable/Selectable Oscillators
Quality Control: Learn More
Renesas Electronics Corporation M665 series voltage-controlled SAW (VCSO) oscillator, part number M665-02-AD-ALJ. This 6-SMD, no-lead component operates at 3.3V with a maximum supply current of 125mA. It offers selectable output frequencies of 644.5313MHz and 693.483MHz, utilizing an LVPECL output logic. The component features a frequency stability of ±100ppm and an operating temperature range of -40°C to 85°C. Its dimensions are 0.550"" L x 0.350"" W (13.97mm x 8.89mm) with a height of 0.165"" (4.19mm). This device is commonly found in telecommunications, data networking, and high-speed computing applications.
Additional Information
Series: M665RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.550"" L x 0.350"" W (13.97mm x 8.89mm) |
| Output | LVPECL |
| Function | - |
| Type | VCSO (SAW) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±100ppm |
| Voltage - Supply | 3.3V |
| Height | 0.165"" (4.19mm) |
| Current - Supply (Max) | 125mA |
| Frequency - Output 1 | 644.5313MHz, 693.483MHz |
| Frequency - Output 2 | - |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy
M665-02-AA-AEJ
XTAL OSC VCSO 3.3V 6SMD
M665-02-AA-AEJT
XTAL OSC VCSO 3.3V 6SMD

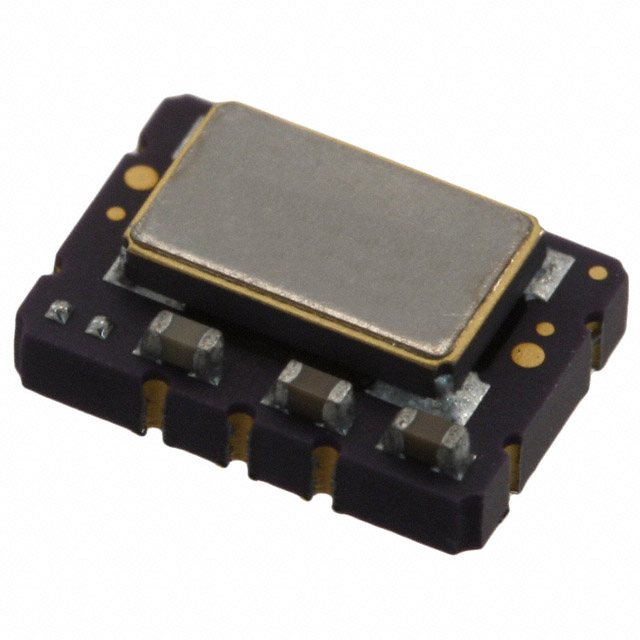

4EA1250A0Z3BACUGI
