NR8800FS-CB-AZ
SENSOR PHOTODIODE 1310NM MODULEManufacturer: Renesas Electronics Corporation
Categories: Photodiodes
Quality Control: Learn More

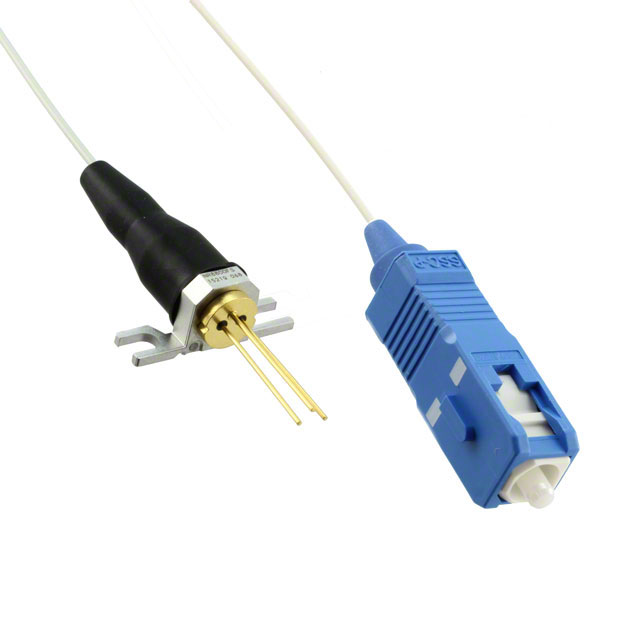

Renesas Electronics Corporation NR8800FS-CB-AZ is a photodiode module optimized for operation at 1310nm. This Avalanche photodiode (APD) features a 80µm diameter active area and is designed for multi-mode fiber integration with a 3-lead configuration. The module supports flange mounting and operates within a temperature range of -40°C to 85°C. Key performance characteristics include a typical dark current of 7nA and a responsivity of 0.94 A/W at 1310nm, with a maximum reverse voltage rating of 100V. This component is suitable for applications in optical communication systems and fiber optic sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, 3 Lead, Multi-Mode Fiber |
| Wavelength | 1310nm |
| Mounting Type | Flange Mount |
| Diode Type | Avalanche |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | - |
| Color - Enhanced | - |
| Responsivity @ nm | 0.94 A/W @ 1310nm |
| Active Area | 80µm Dia |
| Current - Dark (Typ) | 7nA |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
