IDT4MA156250Z3AACUGI8
OSC MEMS 156.25MHZ LVPECL SMDManufacturer: Renesas Electronics Corporation
Categories: Oscillators
Quality Control: Learn More

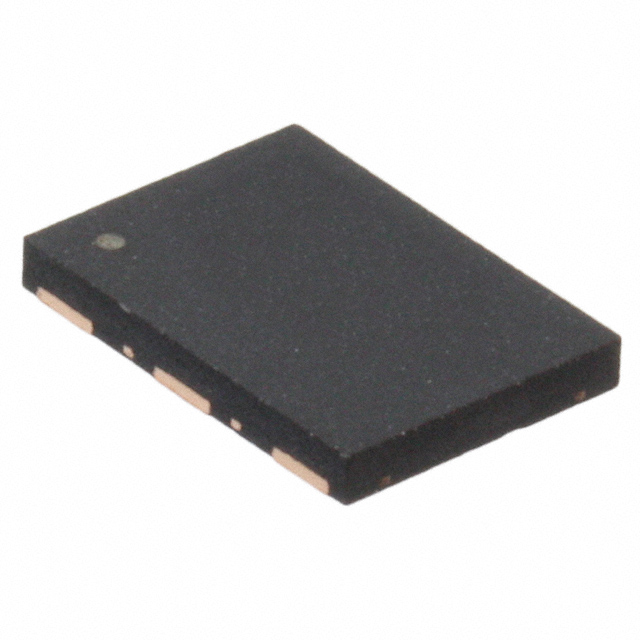

Renesas Electronics Corporation's IDT4MA156250Z3AACUGI8 is a 156.25 MHz MEMS-based XO oscillator with LVPECL output. This surface mount component, part of the 4MA series, operates from a 3.3V supply and features an enable/disable function. It is housed in a 6-SMD, No Lead package with dimensions of 7.00mm x 5.00mm and a maximum seated height of 0.90mm. The device offers a frequency stability of ±50ppm and a typical supply current of 100mA. Operating temperature ranges from -40°C to 85°C, making it suitable for applications in networking, telecommunications, and data storage infrastructure. The component is supplied in Cut Tape (CT) packaging.
Additional Information
Series: 4MARoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 100mA (Typ) |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 156.25 MHz |
| Base Resonator | MEMS |
