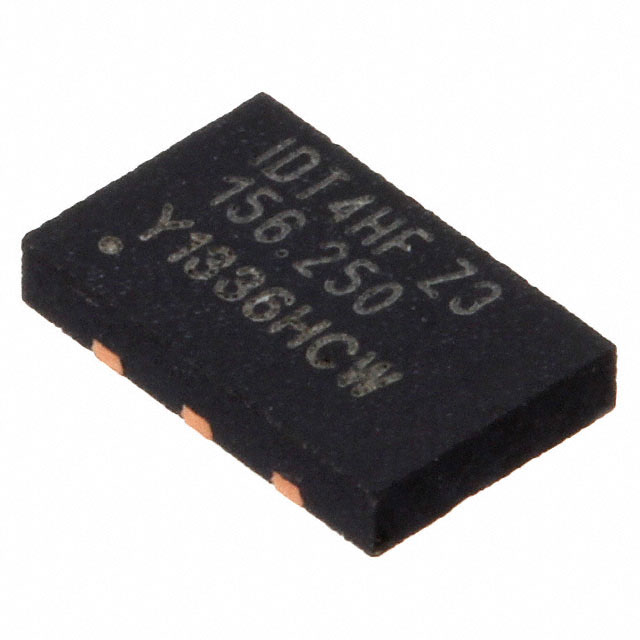

4HF156250Z3AACTGI8
MEMS OSC XO 156.2500MHZ LVPECLManufacturer: Renesas Electronics Corporation
Categories: Oscillators
Quality Control: Learn More
The Renesas Electronics Corporation 4HF series MEMS oscillator, part number 4HF156250Z3AACTGI8, offers a precise 156.25 MHz output frequency with LVPECL signaling. This XO (Standard) device operates from a 3.3V supply and features an Enable/Disable function. Engineered for demanding applications, it boasts a frequency stability of ±50ppm across an operating temperature range of -40°C to 85°C. The oscillator is housed in a compact 6-SMD, No Lead package with dimensions of 0.197" L x 0.126" W (5.00mm x 3.20mm) and a maximum seated height of 0.035" (0.90mm). Typical current consumption is 95mA. This component is commonly utilized in networking, telecommunications, and industrial automation sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: 4HFRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 95mA (Typ) |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 156.25 MHz |
| Base Resonator | MEMS |
