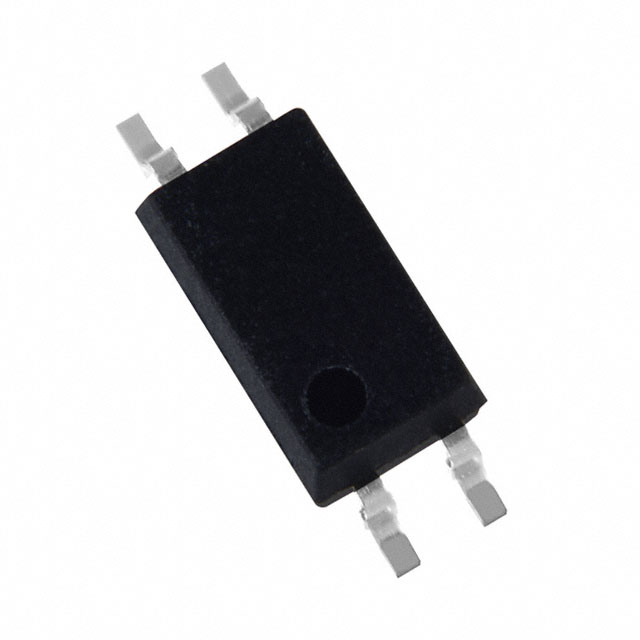

RV1S2752QKCSP-1000N#SC0
PS9XPS8XManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 3750Vrms 1 Channel
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 135°C |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 200% @ 2mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 850% @ 2mA |
| Supplier Device Package | - |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | 10µs, 150µs |
| Rise / Fall Time (Typ) | 8µs, 120µs |
| Grade | Automotive |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
| Qualification | AEC-Q100 |
