productimage

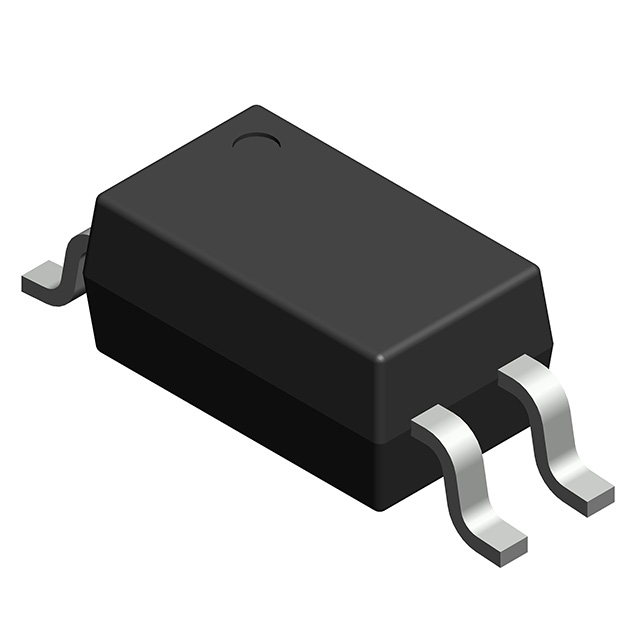

PS9113-V-AX

OPTOISO 3.75KV OPN COLLECTOR 5SO

Manufacturer: Renesas Electronics Corporation

Categories: Optocouplers, Optoisolators

Quality Control: Learn More

Renesas Electronics Corporation PS9113-V-AX is a high-speed optocoupler featuring a logic output with an open-collector configuration. This device provides 3750Vrms of isolation and supports data rates up to 1Mbps. It boasts a minimum Common Mode Transient Immunity (CMTI) of 15kV/µs, ensuring robust performance in noisy environments. The PS9113-V-AX is designed for a single channel with DC input and an open-collector output capable of sourcing 15mA. Key parameters include a maximum forward current (If) of 25mA and a typical forward voltage (Vf) of 1.65V. The device operates from a supply voltage range of 4.5V to 20V. Propagation delays are specified at a maximum of 750ns for tpLH and 500ns for tpHL. Supplied in a 5-SO package, it is suitable for surface mounting and operates across an industrial temperature range of -40°C to 100°C. This component finds application in industrial automation, power supplies, and telecommunications equipment.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Bulk
Technical Details:
PackagingBulk
Package / Case6-SOIC (0.173"", 4.40mm Width), 5 Leads
Output TypeOpen Collector
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 100°C
Voltage - Supply4.5V ~ 20V
Voltage - Forward (Vf) (Typ)1.65V
Data Rate1Mbps
Input TypeDC
Voltage - Isolation3750Vrms
Current - DC Forward (If) (Max)25mA
Inputs - Side 1/Side 21/0
Supplier Device Package5-SO
Rise / Fall Time (Typ)-
Common Mode Transient Immunity (Min)15kV/µs
Propagation Delay tpLH / tpHL (Max)750ns, 500ns
Number of Channels1
Current - Output / Channel15 mA
