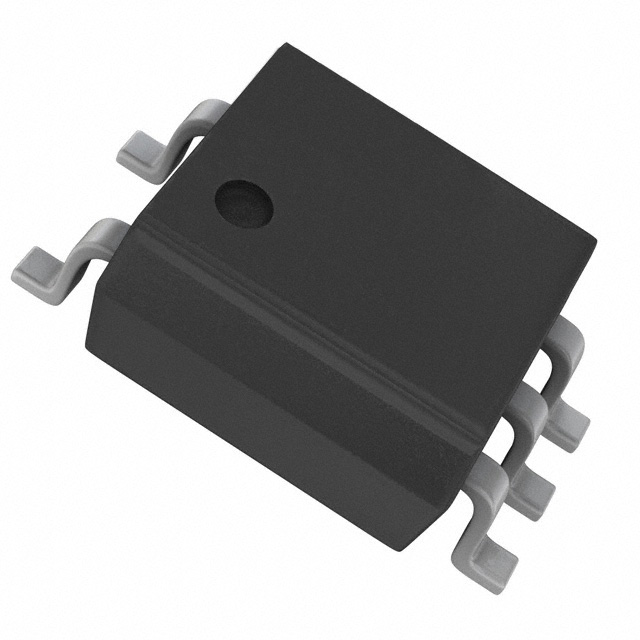

PS8101-F3-AX
OPTOISOLATOR 3.75KV TRANS 6SOManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 3750Vrms 1 Channel 5-SOP
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.173"", 4.40mm Width), 5 Leads |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Input Type | DC |
| Current - Output / Channel | 8mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 15% @ 16mA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | 35% @ 16mA |
| Supplier Device Package | 5-SOP |
| Voltage - Output (Max) | 35V |
| Turn On / Turn Off Time (Typ) | 500ns, 600ns |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
Request a Quote
