PS2911-1-M-AX

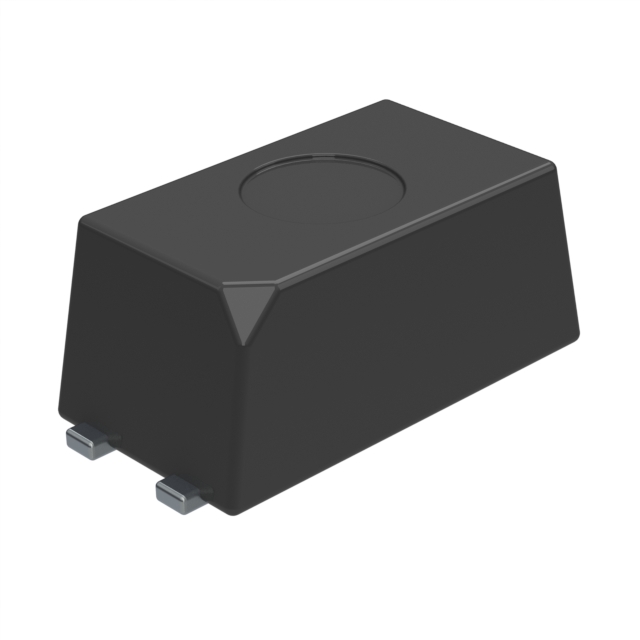

OPTOISOLATOR 2.5KV TRANS 4-SMDManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation PS2911-1-M-AX is a single-channel optoisolator featuring a transistor output. This component provides 2500Vrms isolation and is housed in a 4-SMD, Mini-Flat package suitable for surface mounting. It operates with a DC input and supports an output current of up to 40mA. Key electrical specifications include a typical forward voltage of 1.1V and a maximum forward current of 50mA. The current transfer ratio ranges from a minimum of 100% to a maximum of 200% at 1mA input current. Rise and fall times are typically 5µs and 10µs, respectively, with turn-on and turn-off times of 40µs and 120µs. The device exhibits a maximum Vce saturation of 300mV and an output voltage capability of 40V. Operating temperatures range from -55°C to 100°C. This component finds application in industrial automation, power supply units, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 4-SMD, Flat Leads |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Input Type | DC |
| Current - Output / Channel | 40mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 200% @ 1mA |
| Supplier Device Package | 4-Mini-Flat |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | 40µs, 120µs |
| Rise / Fall Time (Typ) | 5µs, 10µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
