PS2841-4B-AX
OPTOISO 1.5KV 4CH TRANS 12BSOPManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More

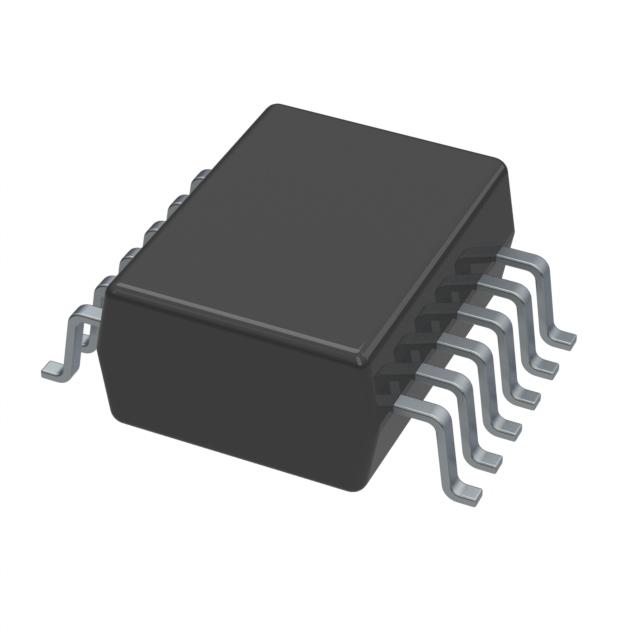

Renesas Electronics Corporation NEPOC Series PS2841-4B-AX is a high-performance optoisolator featuring four isolated channels with transistor outputs. This component provides 1500Vrms isolation, ensuring robust signal separation critical in industrial automation, power supplies, and telecommunications applications. Each channel supports a DC forward current of up to 20mA with a typical forward voltage of 1.1V. The output stage offers a maximum sink current of 20mA per channel and a Vce saturation of 300mV. Current transfer ratios range from a minimum of 100% to a maximum of 400% at 1mA input. The device utilizes a 12-BSOP surface-mount package, facilitating efficient board assembly. Typical rise and fall times are 20µs and 110µs respectively, suitable for many signal coupling requirements. Operating temperature range is -40°C to 100°C.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 12-BSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Input Type | DC |
| Current - Output / Channel | 20mA |
| Voltage - Isolation | 1500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Supplier Device Package | 12-SSOP |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 20µs, 110µs |
| Number of Channels | 4 |
| Current - DC Forward (If) (Max) | 20 mA |
