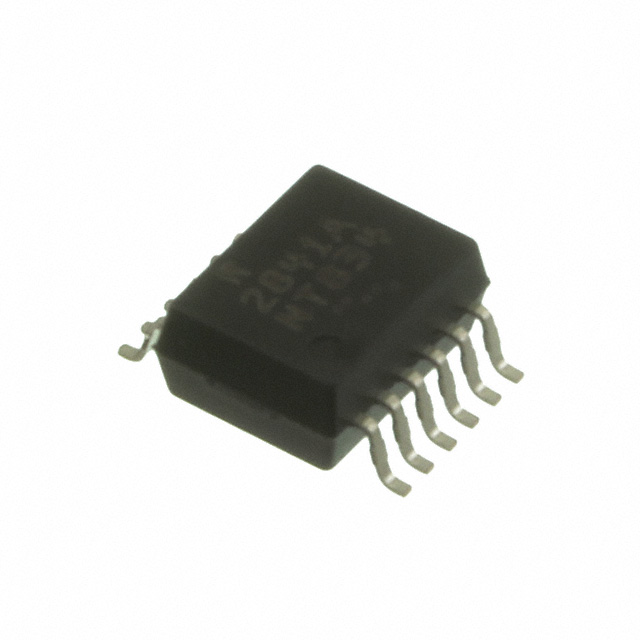

PS2841-4A-AX
OPTOISO 1.5KV 4CH TRANS 12BSOPManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation NEPOC series PS2841-4A-AX is a high-isolation optocoupler featuring four transistor outputs. This component provides 1500Vrms of isolation and is housed in a 12-BSOP package, suitable for surface mounting. Each channel supports a maximum output current of 20mA with a typical forward voltage of 1.1V at 20mA input. The current transfer ratio ranges from a minimum of 100% to a maximum of 400% at 1mA input. Key parameters include a Vce saturation of 300mV (max) and an output voltage capability of up to 70V. The device exhibits a typical rise time of 20µs and a fall time of 110µs. Operating temperatures are specified from -40°C to 100°C. This optocoupler is utilized in power supply systems, industrial control equipment, and telecommunications infrastructure.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 12-BSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Input Type | DC |
| Current - Output / Channel | 20mA |
| Voltage - Isolation | 1500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Supplier Device Package | 12-SSOP |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 20µs, 110µs |
| Number of Channels | 4 |
| Current - DC Forward (If) (Max) | 20 mA |
