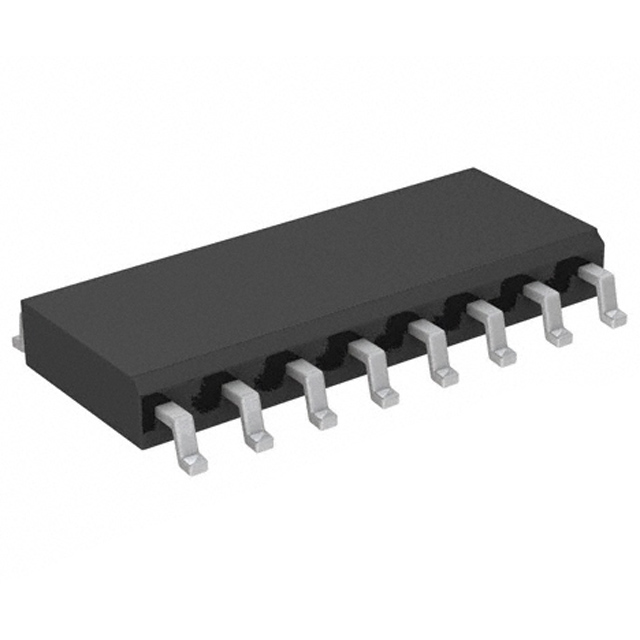

PS2811-4-A
OPTOISO 2.5KV 4CH TRANS 16SOICManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation NEPOC series PS2811-4-A is a 4-channel optoisolator featuring transistor outputs. This device provides 2500Vrms isolation and is housed in a 16-SSOP package suitable for surface mounting. Key specifications include a forward voltage of 1.15V (typ) and a forward current of up to 50mA. The output current per channel is rated at 40mA, with a minimum current transfer ratio of 100% at 1mA and a maximum of 400% at 1mA. The Vce saturation is a maximum of 300mV. Operating temperature range is from -55°C to 100°C. This component is commonly utilized in industrial automation, power supplies, and communication systems where electrical isolation is critical.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 16-SOIC (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Input Type | DC |
| Current - Output / Channel | 40mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Supplier Device Package | 16-SSOP |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 5µs |
| Number of Channels | 4 |
| Current - DC Forward (If) (Max) | 50 mA |
