PS2802-1-A

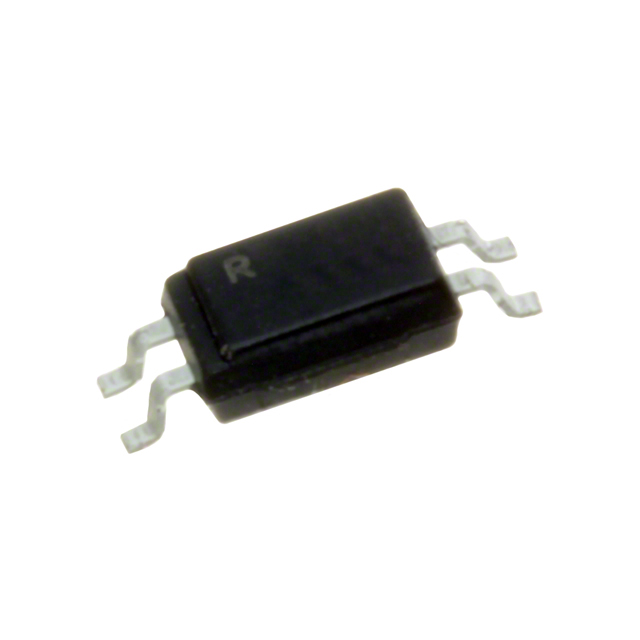

OPTOISOLATOR 2.5KV DARL 4SOIC

Manufacturer: Renesas Electronics Corporation

Categories: Optocouplers, Optoisolators

Quality Control: Learn More

The Renesas Electronics Corporation NEPOC series PS2802-1-A is a single-channel optoisolator featuring a Darlington output. This component provides 2500Vrms isolation voltage and is housed in a 4-SSOP package suitable for surface mounting. Key electrical characteristics include a typical forward voltage (Vf) of 1.1V and a maximum forward current (If) of 50mA. The output stage offers a minimum current transfer ratio (CTR) of 200% at 1mA input current, with a maximum output current capability of 90mA per channel. The device operates within a temperature range of -55°C to 100°C. Its typical rise and fall times are 200µs. This optoisolator is commonly employed in industrial automation, power control systems, and telecommunications equipment.

Additional Information

Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:
Technical Details:
PackagingStrip
Package / Case4-SOIC (0.173"", 4.40mm Width)
Output TypeDarlington
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.1V
Input TypeDC
Current - Output / Channel90mA
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)200% @ 1mA
Vce Saturation (Max)1V
Current Transfer Ratio (Max)-
Supplier Device Package4-SSOP
Voltage - Output (Max)40V
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)200µs, 200µs
Number of Channels1
Current - DC Forward (If) (Max)50 mA
