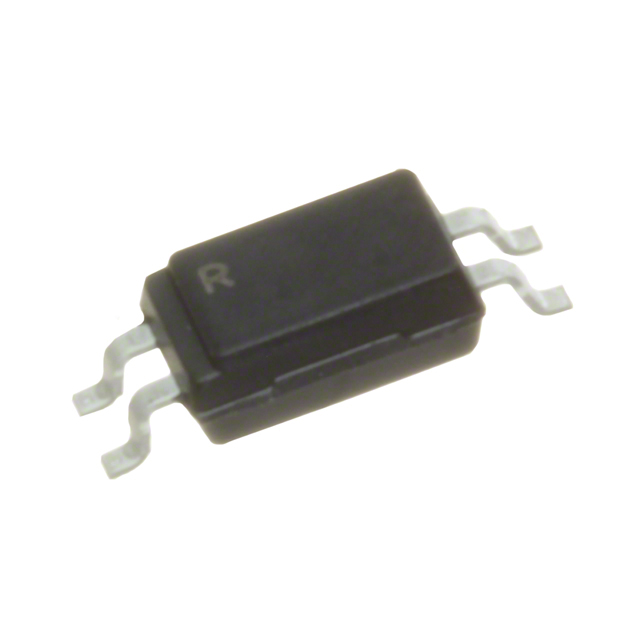

PS2801C-1-A
OPTOISOLATOR 2.5KV TRANS 4SOICManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation NEPOC series PS2801C-1-A is a single-channel optoisolator with a transistor output. This component provides 2500Vrms isolation and features a DC input with a typical forward voltage of 1.2V at 30mA. The transistor output can handle up to 80V and a maximum output current of 30mA, with a saturation voltage of 300mV. The device exhibits a current transfer ratio ranging from a minimum of 50% at 5mA to a maximum of 400% at 5mA. Typical rise and fall times are 5µs and 7µs respectively, with turn-on and turn-off times of 10µs and 7µs. Packaged in a 4-SOIC (0.173", 4.40mm width) format for surface mounting, the PS2801C-1-A is suitable for applications in industrial automation, power supplies, and communication equipment.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 4-SOIC (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 30mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Supplier Device Package | 4-SSOP |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | 10µs, 7µs |
| Rise / Fall Time (Typ) | 5µs, 7µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 30 mA |
