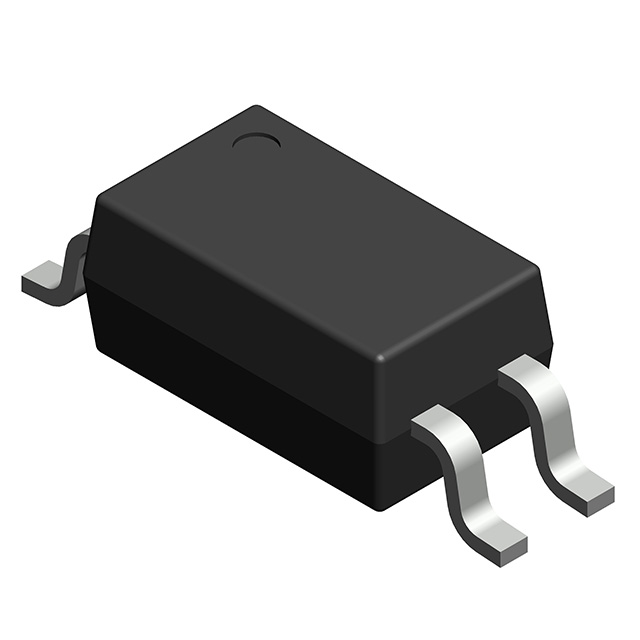

PS2711-1-V-A
PS27Manufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Input Type | DC |
| Current - Output / Channel | 40mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Supplier Device Package | 4-SOP |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 5µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
Request a Quote
