PS2581AL2-E3-A

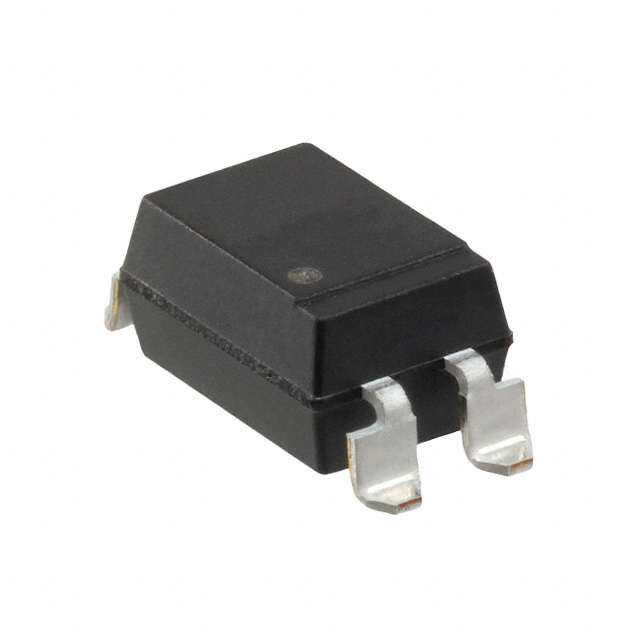

TRANSISTOR OUTPUT OPTOCOUPLERManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation NEPOC series PS2581AL2-E3-A is a single-channel, transistor output optocoupler. This device provides 5000Vrms isolation and features a surface-mount 4-SMD Gull Wing package. The input accepts DC signals with a typical forward voltage (Vf) of 1.2V and a maximum DC forward current (If) of 30mA. The output stage, a transistor, can sink up to 30mA. The current transfer ratio (CTR) ranges from a minimum of 50% at 5mA input to a maximum of 400% at 5mA input. Typical rise and fall times are 3µs and 5µs, respectively. Maximum collector-emitter saturation voltage (Vce(sat)) is 300mV, and the output can handle up to 70V. This component is suitable for applications requiring electrical isolation in industrial automation, power supplies, and communication systems. Supplied in Bulk packaging.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 30mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 30 mA |
