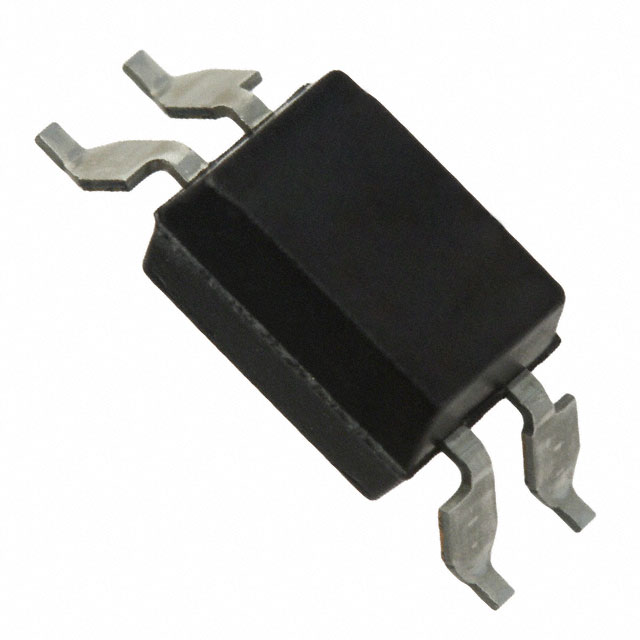

PS2561AL2-1-V-E3-A
TRANSISTOR OUTPUT OPTOCOUPLERManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation NEPOC series PS2561AL2-1-V-E3-A is a single-channel transistor output optocoupler. It provides 5000Vrms isolation and features a surface mount 4-SMD, Gull Wing package. The device operates with a DC input and supports an output current of up to 30mA per channel. Key performance parameters include a minimum current transfer ratio of 50% at 5mA and a maximum of 400% at 5mA. Forward voltage (Vf) is typcially 1.2V with a maximum forward current (If) of 30mA. The collector-emitter saturation voltage (Vce Sat) is a maximum of 300mV. Typical rise and fall times are 3µs and 5µs respectively. This component is suitable for applications in industrial automation, power supplies, and communication systems. Operating temperature range is -55°C to 100°C.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 30mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 30 mA |
