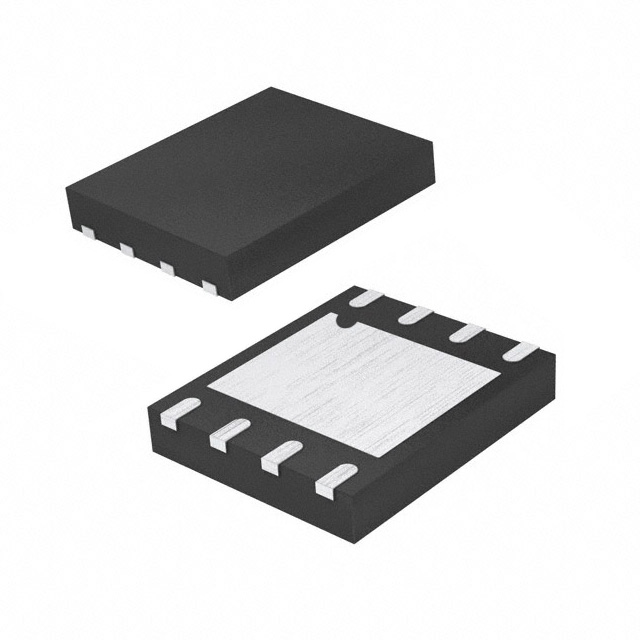

PS2505L-4-A
OPTOISOLTR 5KV 4CH TRANS 16-SMDManufacturer: Renesas Electronics Corporation
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Renesas Electronics Corporation NEPOC series PS2505L-4-A is a 4-channel optocoupler featuring transistor outputs. This component provides a high isolation voltage of 5000Vrms, making it suitable for applications requiring robust electrical separation. The device supports both AC and DC input signals and offers a wide operating temperature range from -55°C to 100°C. Key specifications include a typical forward voltage (Vf) of 1.17V and a maximum saturation voltage (Vce Sat) of 300mV. Current transfer ratios range from a minimum of 80% at 5mA to a maximum of 600% at 5mA. The output current per channel is 50mA, with a maximum DC forward input current (If) of 80mA. Rise and fall times are typically 3µs and 5µs, respectively. The PS2505L-4-A is packaged in a 16-SMD, gull-wing configuration for surface mounting. This device finds application in industrial automation, power supply control, and telecommunication systems.
Additional Information
Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.17V |
| Input Type | AC, DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Supplier Device Package | 16-SMD |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Number of Channels | 4 |
| Current - DC Forward (If) (Max) | 80 mA |
