PS2505-4-A

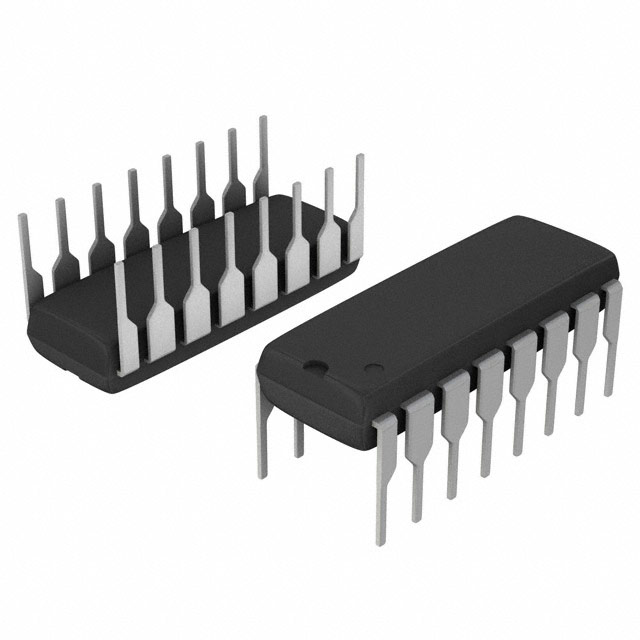

OPTOISOLATOR 5KV 4CH TRANS 16DIP

Manufacturer: Renesas Electronics Corporation

Categories: Optocouplers, Optoisolators

Quality Control: Learn More

Renesas Electronics Corporation NEPOC series PS2505-4-A is a 4-channel optoisolator with a transistor output. This component provides 5000Vrms isolation and features a 16-DIP package suitable for through-hole mounting. The device supports both AC and DC input signals and delivers a maximum output current of 50mA per channel. Current transfer ratios range from a minimum of 80% at 5mA to a maximum of 600% at 5mA. Forward voltage is typically 1.17V with a maximum forward current of 80mA. The output exhibits a Vce saturation of 300mV (max). Rise and fall times are approximately 3µs and 5µs, respectively. Operating temperature range is -55°C to 100°C. This optoisolator is commonly employed in power supply control, industrial automation, and telecommunications equipment.

Additional Information

Series: NEPOCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / Case16-DIP (0.300"", 7.62mm)
Output TypeTransistor
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.17V
Input TypeAC, DC
Current - Output / Channel50mA
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)80% @ 5mA
Vce Saturation (Max)300mV
Current Transfer Ratio (Max)600% @ 5mA
Supplier Device Package16-DIP
Voltage - Output (Max)80V
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 5µs
Number of Channels4
Current - DC Forward (If) (Max)80 mA
