R9A08G045S17GBG#BC0
SOC RZ/G3S 14BGA SECURE 1+1CPU(FManufacturer: Renesas Electronics Corporation
Categories: Microprocessors
Quality Control: Learn More

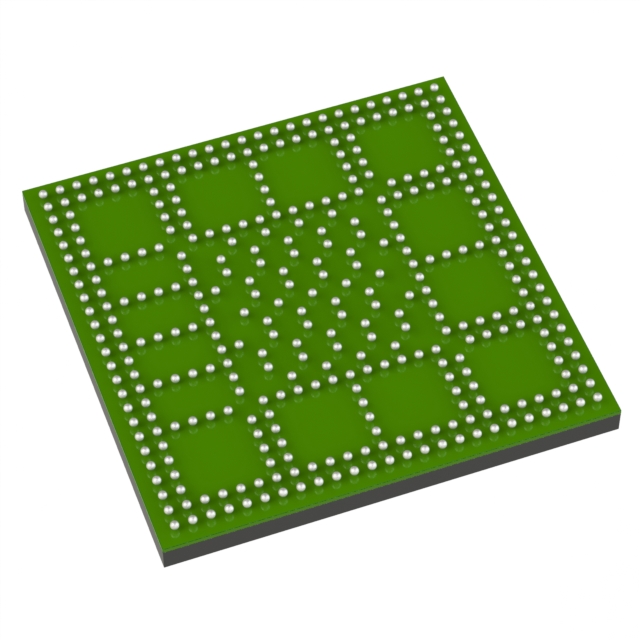

ARM® Cortex®-A55 Microprocessor IC RZ/G3S 1 Core, 64-Bit 1.1GHz 361-LFBGA (13x13)
Additional Information
Series: RZ/G3SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 361-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 1.1GHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-A55 |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 361-LFBGA (13x13) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 OTG (2) |
| Number of Cores/Bus Width | 1 Core, 64-Bit |
| Co-Processors/DSP | ARM® Cortex®-M33 |
| RAM Controllers | DDR4, LPDDR4 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | AES, ARM TZ, Hash, RSA, Secure Boot, TRNG |
| SATA | - |
| Additional Interfaces | DMA, I2C, I2S, MMC/SD/SDIO, PCIe, SPI, UART |
