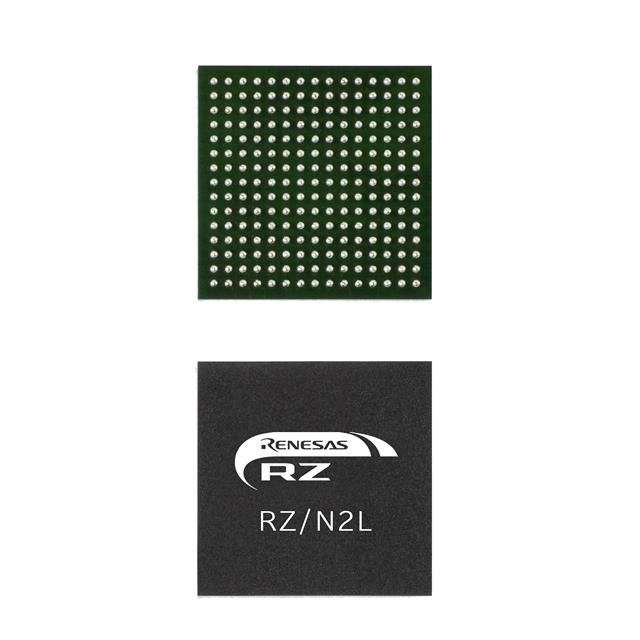

R9A07G084M04GBG#AC0
IC MPU RZ/N2L 300/400MHZ 225FBGAManufacturer: Renesas Electronics Corporation
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-R52 Microprocessor IC RZ/N2L 1 Core, 32-Bit 300MHz, 400MHz 225-FBGA (13x13)
Additional Information
Series: RZ/N2LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 225-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 300MHz, 400MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-R52 |
| Voltage - I/O | 1.8V, 3.3V |
| Supplier Device Package | 225-FBGA (13x13) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | - |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | CANbus, I2C, SCI, SPI, WDT |
