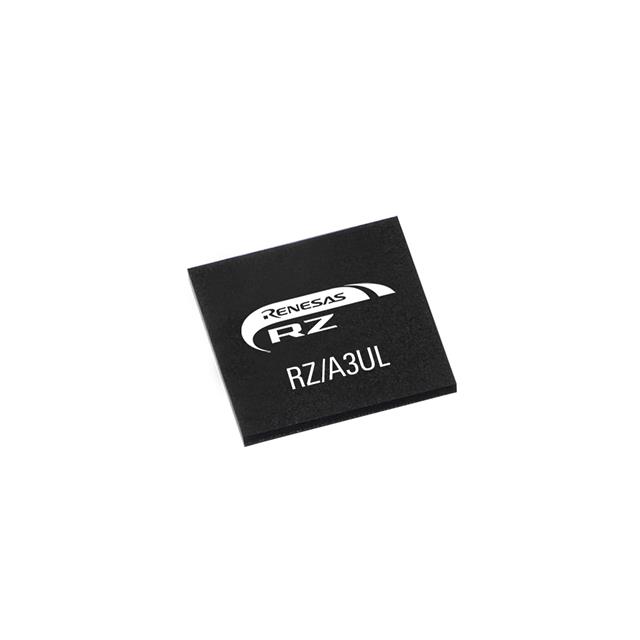

R9A07G063U02GBG#AC0
IC MPU RZ/A3UL 1GHZ 361PBGAManufacturer: Renesas Electronics Corporation
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A55 Microprocessor IC RZ/A3UL 1 Core, 64-Bit 1GHz 361-PBGA (13x13)
Additional Information
Series: RZ/A3ULRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 361-BGA |
| Mounting Type | Surface Mount |
| Speed | 1GHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-A55 |
| Voltage - I/O | 1.1V, 1.8V, 3.3V |
| Supplier Device Package | 361-PBGA (13x13) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 (2) |
| Number of Cores/Bus Width | 1 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L, DDR4 |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, MIPI/CSI2 |
| Security Features | - |
| SATA | - |
| Additional Interfaces | CANbus, eMMC/SD/SDIO, I2C, SCI, SPI, UART |
