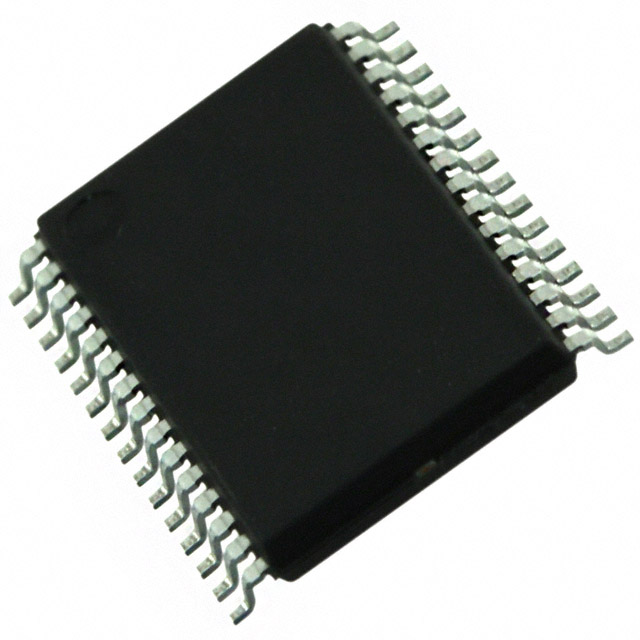

UPD78F0591MC-CAB-AX
IC MCU 8BIT 32KB FLASH 30SSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation 78K0/Kx2-A series UPD78F0591MC-CAB-AX is an 8-bit microcontroller featuring a 78K/0 core operating at up to 20MHz. This component offers 32KB of FLASH program memory and 1KB of RAM. Connectivity options include 3-Wire SIO, I2C, LINbus, and UART/USART. On-chip peripherals comprise LVD, POR, PWM, and WDT. It also includes ten 12-bit A/D converters. The UPD78F0591MC-CAB-AX is housed in a 30-SSOP package suitable for surface mounting and operates within an ambient temperature range of -40°C to 85°C. This microcontroller is commonly utilized in automotive, industrial control, and consumer electronics applications.
Additional Information
Series: 78K0/Kx2-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 30-LSSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 78K/0 |
| Data Converters | A/D 10x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 22 |
| Programmable | Not Verified |
