UPD78F0511GB-UES-A

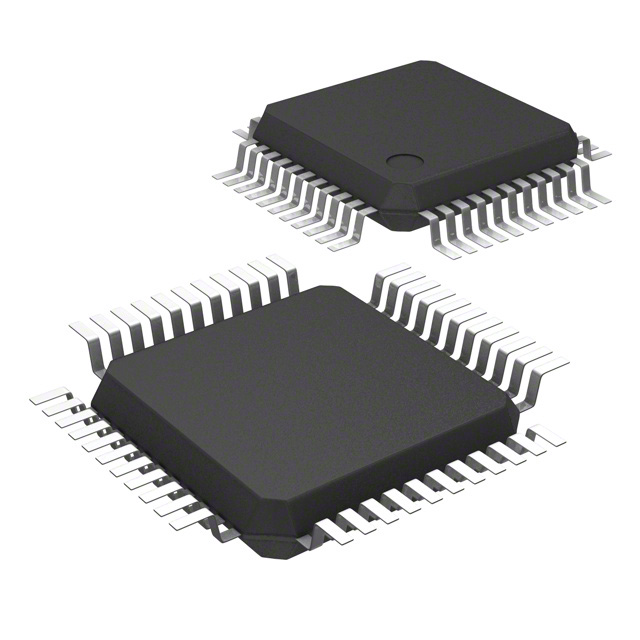

IC MCU 8BIT 16KB FLASH 44LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation 78K0/Kx2 series microcontroller, part number UPD78F0511GB-UES-A, features an 8-bit 78K/0 core operating at 20MHz. This device offers 16KB of FLASH program memory and 768 bytes of RAM. Connectivity options include 3-Wire SIO, I2C, LINbus, and UART/USART. The microcontroller is equipped with an 8-channel, 10-bit A/D converter and peripherals such as LVD, POR, PWM, and WDT. With 37 I/O pins and an internal oscillator, it supports surface mount installation in a 44-LQFP package. Operating voltage ranges from 1.8V to 5.5V, with an operating temperature range of -40°C to 85°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: 78K0/Kx2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 78K/0 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 37 |
| Programmable | Not Verified |
