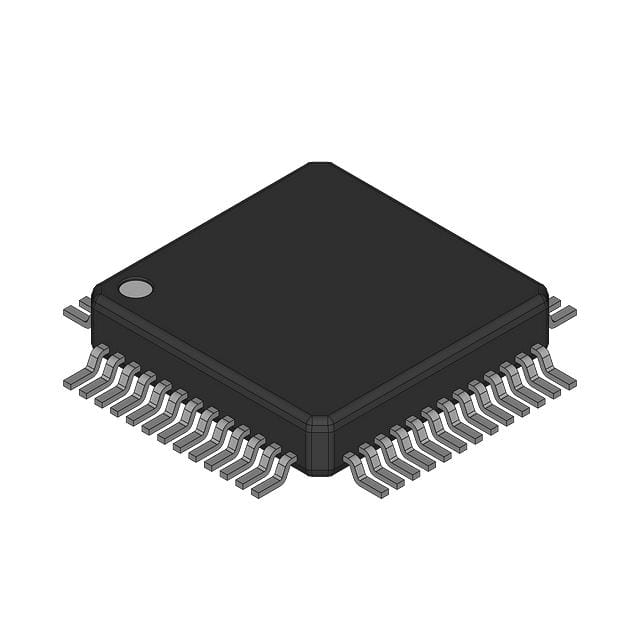

UPD78F0124M6GB-8ET-A
IC MCU 8BIT 32KB FLASH 52LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation UPD78F0124M6GB-8ET-A is an 8-bit microcontroller featuring a 78K/0 core. This device operates at a maximum speed of 12MHz and offers 32KB of FLASH program memory with 1KB of RAM. Connectivity options include 3-Wire SIO and UART/USART. It integrates an 8x10-bit SAR Analog-to-Digital converter. The microcontroller is housed in a 52-LQFP (10x10) package suitable for surface mounting and operates within a voltage range of 2.7V to 5.5V. Peripheral support includes LVI and WDT. This component is commonly utilized in industrial and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LQFP |
| Mounting Type | Surface Mount |
| Speed | 12MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 78K/0 |
| Data Converters | A/D 8x10b SAR |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | 3-Wire SIO, UART/USART |
| Peripherals | LVI, WDT |
| Supplier Device Package | 52-LQFP (10x10) |
| Number of I/O | 26 |
| Programmable | Not Verified |
