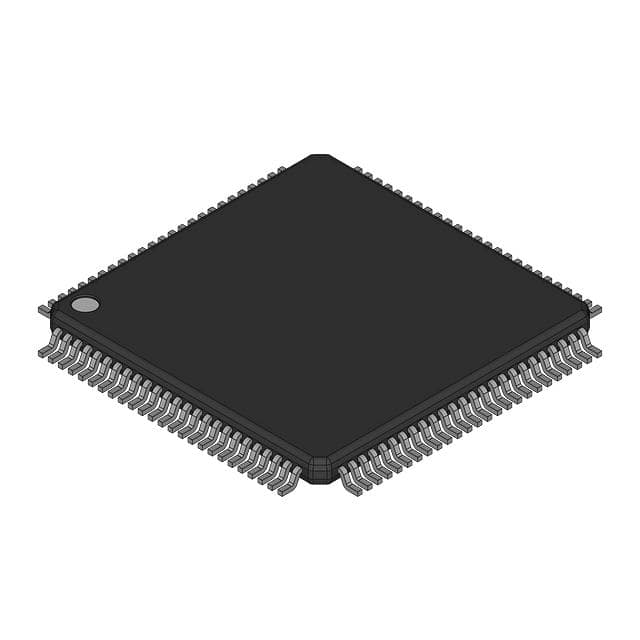

UPD70F3746GJ-GAE-AX
IC MCU 32BIT 1MB FLASH 144LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation V850ES/Jx3 series microcontroller, part number UPD70F3746GJ-GAE-AX. This 32-bit single-core microcontroller features a V850ES core operating at 32MHz. It includes 1MB of FLASH program memory and 60KB of RAM. Connectivity options comprise CSI, EBI/EMI, I2C, and UART/USART. The device is equipped with a 16-channel 10-bit Analog-to-Digital converter and 2-channel 8-bit Digital-to-Analog converters. Peripherals include DMA, LVD, PWM, and WDT. The UPD70F3746GJ-GAE-AX is designed for surface mounting within a 144-LQFP package and operates over a temperature range of -40°C to 85°C. This component finds application in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: V850ES/Jx3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 60K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | V850ES |
| Data Converters | A/D 16x10b; D/A 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.85V ~ 3.6V |
| Connectivity | CSI, EBI/EMI, I2C, UART/USART |
| Peripherals | DMA, LVD, PWM, WDT |
| Number of I/O | 128 |
| Programmable | Not Verified |
