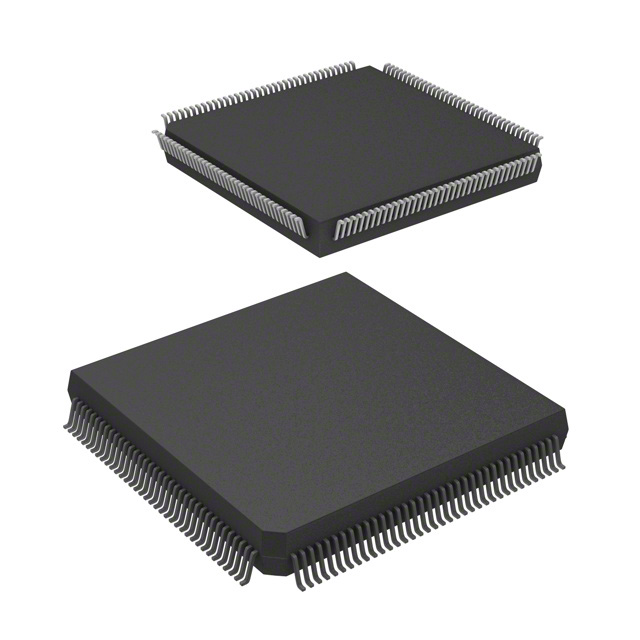

UPD70F3525GJA9-GAE-H
IC MCU 32BIT 2MB FLASH 144LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation UPD70F3525GJA9-GAE-H is a 32-bit V850E2M microcontroller from the V850E2/Dx4 series. This device features a 120MHz core speed and 2MB of FLASH program memory, organized as 2M x 8 bits. It includes 192K x 8 bits of RAM and 32K x 8 bits of EEPROM. Connectivity options are extensive, supporting CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SPI, SSI, UART/USART, and USB. Peripherals include DMA, I2S, LCD, LVD, POR, PWM, and WDT. The microcontroller offers 105 I/O lines and a 16-channel 12-bit Analog-to-Digital converter. It operates from a voltage supply of 2.7V to 5.5V and has an operating temperature range of -40°C to 105°C. The component is supplied in a 144-LFQFP (20x20) surface-mount package, suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: V850E2/Dx4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| Core Processor | V850E2M |
| Data Converters | A/D 16x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, I2S, LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-LFQFP (20x20) |
| Number of I/O | 105 |
| Programmable | Not Verified |
