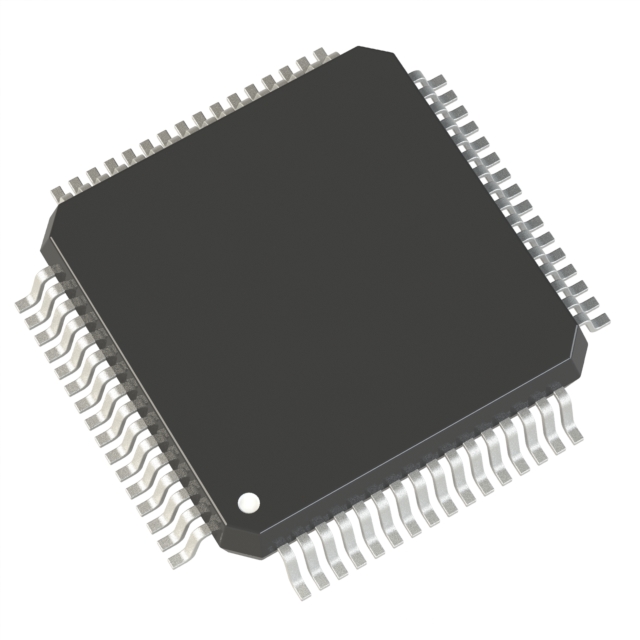

UPD70F3370M2GBA-GAH-AX
IC MCU 32BIT 128MB FLASH 64LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation's V850ES/FE3 series microcontroller, the UPD70F3370M2GBA-GAH-AX, is a 32-bit single-core device operating at 32MHz. This microcontroller features 128KB of FLASH program memory and 8K x 8 of RAM, complemented by 32K x 8 of EEPROM. Connectivity options include CANbus, CSI, I2C, LINbus, and UART/USART. The UPD70F3370M2GBA-GAH-AX includes a 10x10b A/D data converter and peripherals such as DMA, LVD, POR, PWM, and WDT. Packaged in a 64-LFQFP (10x10) for surface mounting, this component operates within a voltage range of 3.3V to 5.5V and is rated for an operating temperature of -40°C to 85°C. Its robust feature set makes it suitable for applications in automotive and industrial control systems.
Additional Information
Series: V850ES/FE3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| Core Processor | V850ES |
| Data Converters | A/D 10x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3.3V ~ 5.5V |
| Connectivity | CANbus, CSI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 51 |
| Programmable | Not Verified |
