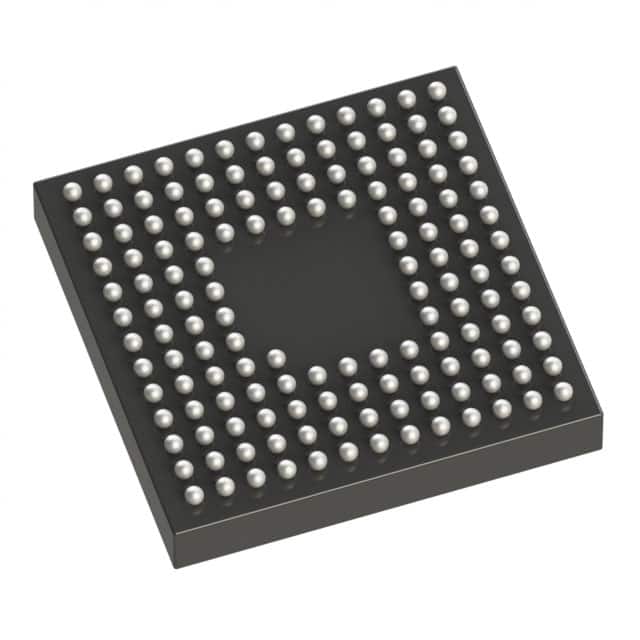

R7FS5D97E3A01CLK#AC0
SYNERGY MCU PLATFORM S5D9 2MB 14Manufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4 Renesas Synergy™ S5 Microcontroller IC 32-Bit 120MHz 2MB (2M x 8) FLASH 145-TFLGA (7x7)
Additional Information
Series: Renesas Synergy™ S5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 145-TFLGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 640K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 22x12b SAR; D/A 2x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | CANbus, Ethernet, I2C, QSPI, SCI, SPI, SSIE, UART/USART, USB |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 145-TFLGA (7x7) |
| Number of I/O | 110 |
