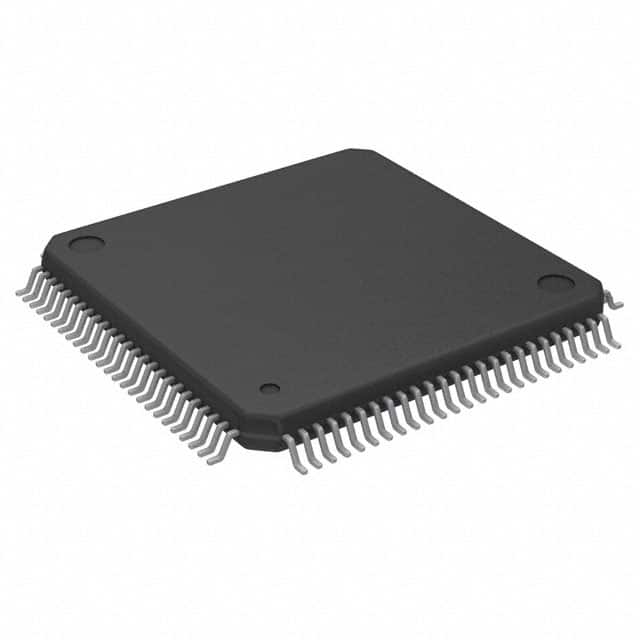

R7FA6M2AD3CFP#BA0
MCU RA6 ARM CM4 120MHZ 512K/384KManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4F RA Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 100-LFQFP (14x14)
Additional Information
Series: RARoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 22x12b SAR; D/A 2x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, FIFO, I2C, IrDA, MMC/SD, SPI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 100-LFQFP (14x14) |
| Number of I/O | 76 |
Request a Quote
Clients Also Buy

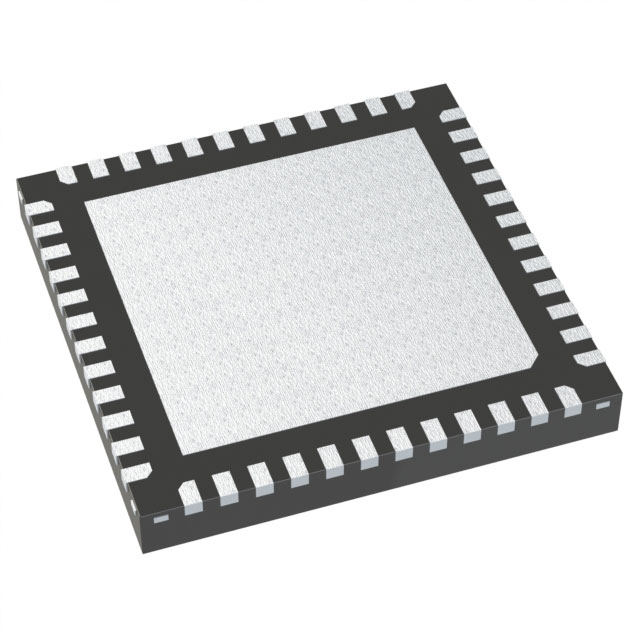

R7FA4E10B2CNE#AA0
RA_FAMILY-2

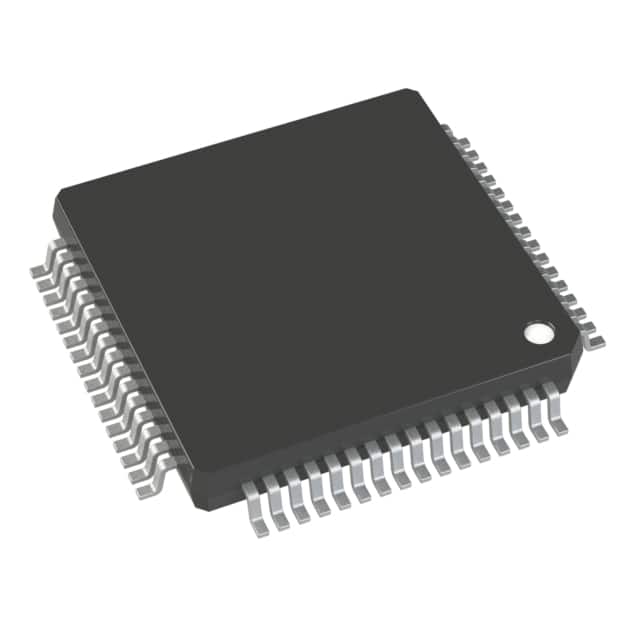

R7FA4E10B2CFM#AA0
