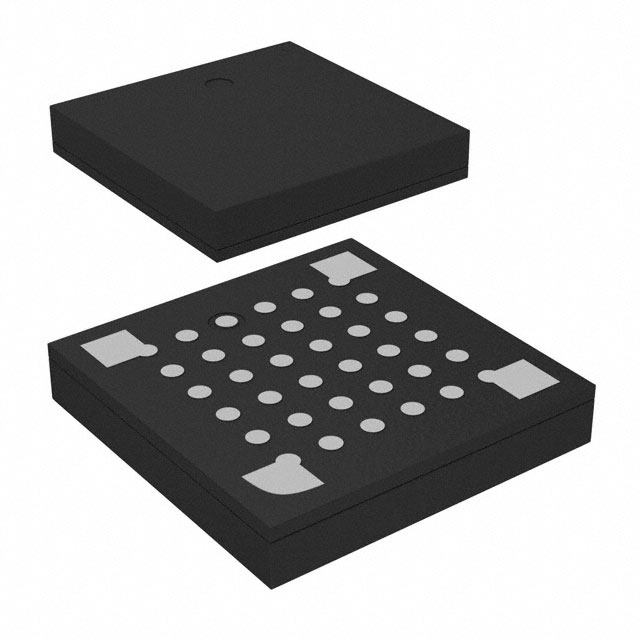

R7FA2E1A52DBV#HC0
IC MCU 32BIT 32KB FLASH 36WFLGAManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation RA2E1 Series R7FA2E1A52DBV-HC0 is a 32-bit ARM Cortex-M23 microcontroller. This single-core processor operates at 48MHz and features 32KB of FLASH program memory and 16KB of RAM. Connectivity options include I2C, SmartCard, SPI, and UART/USART interfaces. The device includes an 8-channel 12-bit SAR Analog-to-Digital converter and 4KB of EEPROM. On-chip peripherals consist of AES, DMA, LVD, POR, PWM, a temperature sensor, TRNG, and WDT. The microcontroller is supplied in a 36-WFLGA (4x4) package for surface mounting and operates within a voltage range of 1.6V to 5.5V, with an operating temperature of -40°C to 85°C. This component is suitable for industrial automation, IoT edge devices, and consumer electronics applications.
Additional Information
Series: RA2E1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFLGA |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M23 |
| Data Converters | A/D 8x12b SAR |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Connectivity | I2C, SmartCard, SPI, UART/USART |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT |
| Supplier Device Package | 36-WFLGA (4x4) |
| Number of I/O | 27 |
| Programmable | Not Verified |
