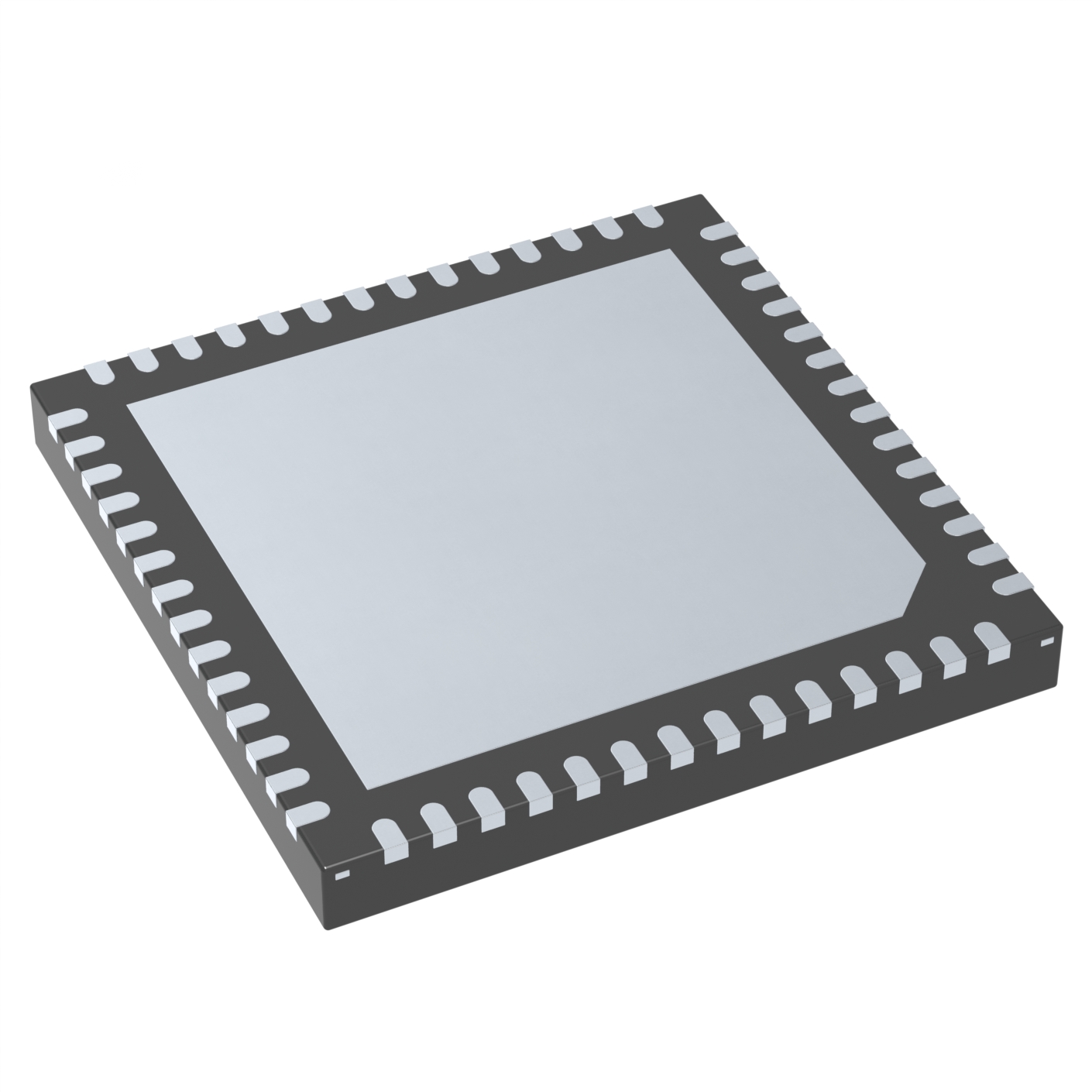

R7F0E01182DNG#AA0
IC MCU 32BIT 256KB FLASH 56HVQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R7F0E01182DNG-AA0 is a 32-bit ARM Cortex-M0+ microcontroller featuring a single-core processor operating at 64MHz. This device offers 256KB of FLASH program memory and 128KB of RAM. Connectivity options include I2C, IrDA, SCI, SPI, UART/USART, and USB. It is housed in a 56-HVQFN (7x7) package and supports surface mount installation. The R7F0E01182DNG-AA0 includes peripherals such as DMA, LCD controller, LVD, POR, PWM, and WDT, along with an 8x14-bit SAR Analog-to-Digital converter. This component is designed for operation within a temperature range of -40°C to 85°C and a supply voltage of 1.62V to 3.6V. It is commonly utilized in industrial automation, consumer electronics, and IoT applications.
Additional Information
Series: RE01RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 64MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 8x14b SAR |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, IrDA, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 56-HVQFN (7x7) |
| Number of I/O | 33 |
| Programmable | Not Verified |
