R7F0C901B2DNP-C#HA0
IC MCU 16BIT 48KB FLASH 32WQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation RL78 microcontroller, part number R7F0C901B2DNP-C-HA0. This 16-bit microcontroller features a 32MHz RL78 core with 48KB of FLASH program memory and 4KB of RAM. Connectivity options include CSI, I2C, LINbus, SPI, and UART/USART. The device is equipped with an 8-channel 8/10-bit Analog-to-Digital converter and includes peripherals such as LVD, POR, PWM, and WDT. It operates from a 1.6V to 5.5V supply and has 22 I/O lines. The component is housed in a 32-WQFN (5x5) exposed pad package, suitable for surface mounting. Operating temperature range is -40°C to 85°C (TA). This device is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: RL78RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 48KB (48K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | RL78 |
| Data Converters | A/D 8x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Connectivity | CSI, I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 32-WQFN (5x5) |
| Number of I/O | 22 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
R7F0C901B2DNP-C#BA0
IC MCU 16BIT 48KB FLASH 32WQFN
R7F0C901B2DNP-C#BC0
IC MCU 16BIT 48KB FLASH 32WQFN

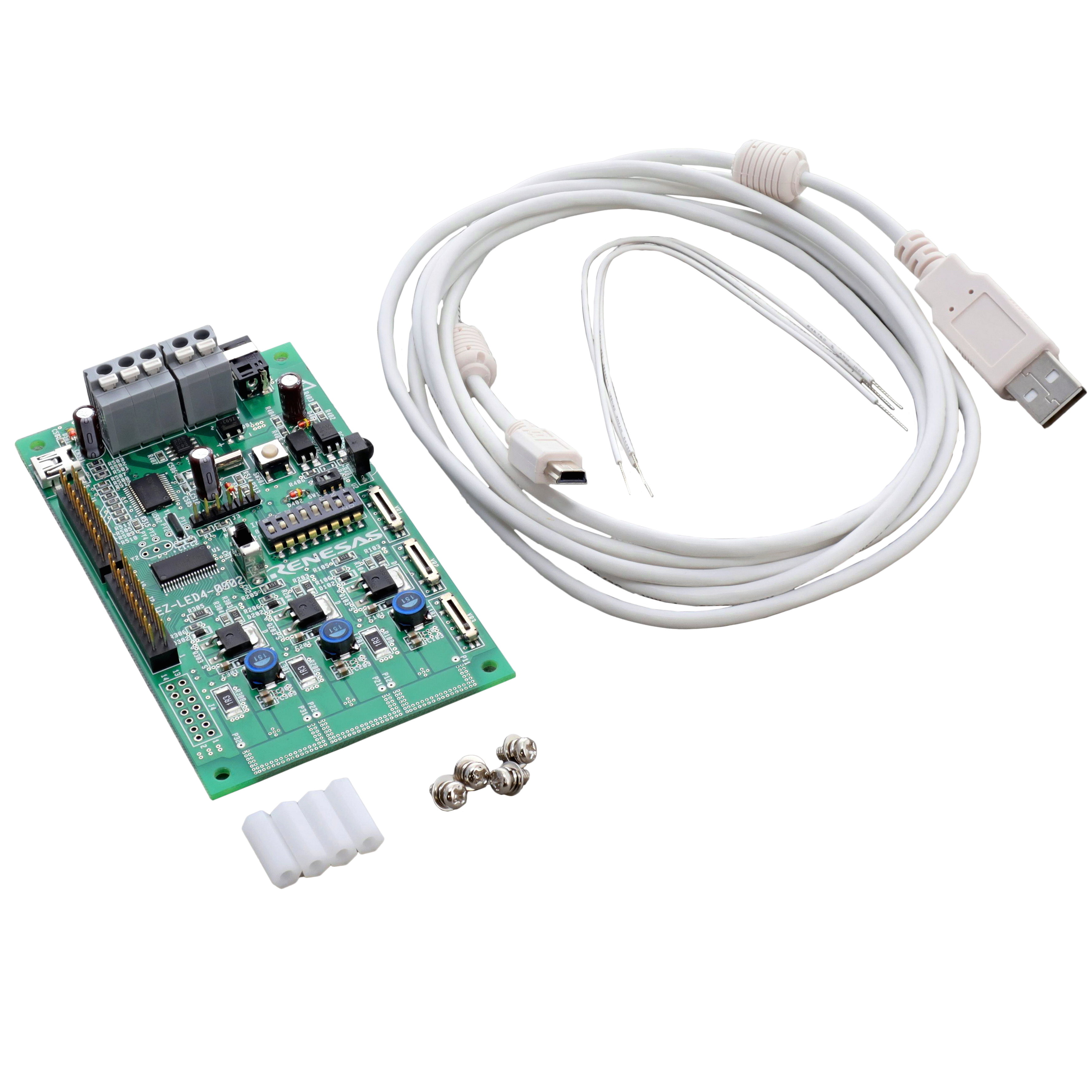

EZ-0012
