R5F72865N100FP#U2
IC MCU 32BIT 512KB FLSH 176LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More

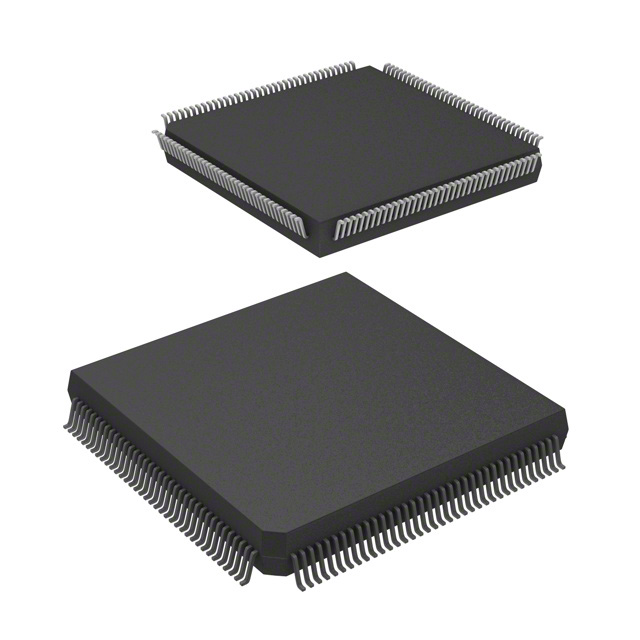

Renesas Electronics Corporation SuperH® SH7280 microcontroller, part number R5F72865N100FP-U2. This 32-bit single-core SH2A processor operates at 100MHz, featuring 512KB of FLASH program memory and 24KB of RAM. Connectivity options include CANbus, I2C, SCI, SSU, and USB interfaces. The device incorporates 12-bit 12-channel and 8-bit 2-channel analog-to-digital converters. Peripherals such as DMA, PWM, and WDT are integrated. This surface-mount component is housed in a 176-LFQFP (24x24) package. The operating temperature range is -20°C to 85°C. Common applications include industrial control and automotive systems.
Additional Information
Series: SuperH® SH7280RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 24K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | SH2A |
| Data Converters | A/D 12x12b, 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, I2C, SCI, SSU, USB |
| Peripherals | DMA, PWM, WDT |
| Supplier Device Package | 176-LFQFP (24x24) |
| Number of I/O | 101 |
| Programmable | Not Verified |
