R5F61668RN50FPV
IC MCU 32BIT 1MB FLASH 144LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More

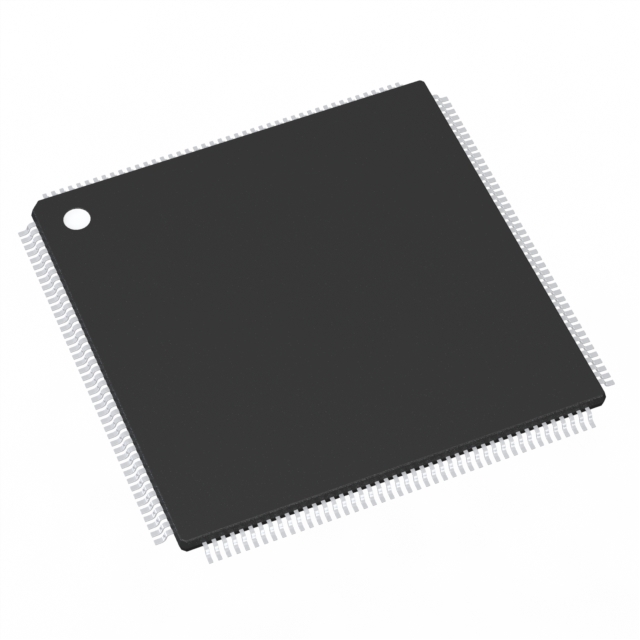

The Renesas Electronics Corporation H8® H8SX/1600 series R5F61668RN50FPV is a 32-bit, single-core microcontroller featuring a 50MHz H8SX core. This component offers 1MB of FLASH program memory and 56KB of RAM. Connectivity options include EBI/EMI, I2C, IrDA, SCI, SmartCard, and USB. The device is equipped with an 8x10-bit A/D converter and 2x8-bit D/A converters, along with peripherals such as DMA, LVD, POR, PWM, and WDT. It operates from a 3V to 3.6V supply and is housed in a 144-LFQFP (20x20) surface-mount package. The operating temperature range is -20°C to 75°C. This microcontroller is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: H8® H8SX/1600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 56K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8SX |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, IrDA, SCI, SmartCard, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-LFQFP (20x20) |
| Number of I/O | 92 |
| Programmable | Not Verified |
Request a Quote
