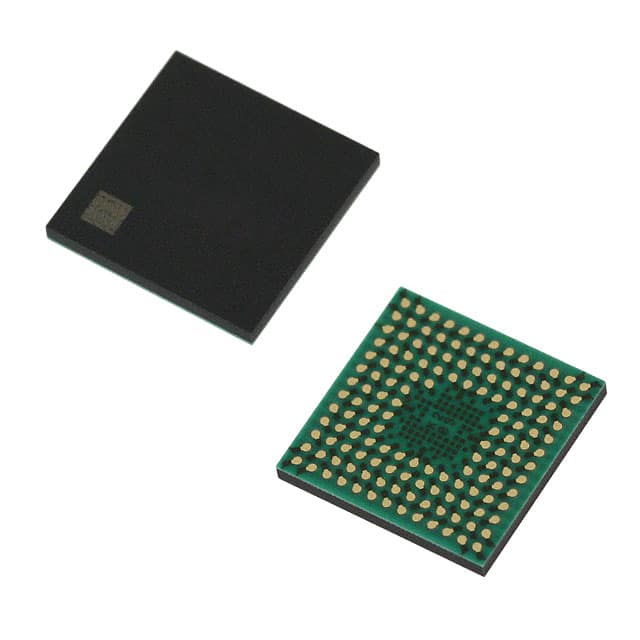

R5F61665N50LGV
IC MCU 32BIT 512KB FLSH 145TFLGAManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8SX/1600 series microcontroller, part number R5F61665N50LGV. This 32-bit, single-core H8SX processor operates at 50MHz, featuring 512KB of FLASH program memory and 40KB of RAM. Connectivity options include EBI/EMI, I2C, IrDA, SCI, SmartCard, and USB. The device integrates 8x10-bit A/D converters and 2x10-bit D/A converters. On-chip peripherals include DMA, LVD, POR, PWM, and WDT. Supplied in a 145-TFLGA (9x9) surface mount package, this component is suitable for applications requiring robust processing and extensive peripheral support. Operating voltage is 3V to 3.6V, with an operating temperature range of -20°C to 75°C. Industries utilizing this device include industrial automation and automotive systems.
Additional Information
Series: H8® H8SX/1600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 145-TFLGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 40K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8SX |
| Data Converters | A/D 8x10b; D/A 2x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, IrDA, SCI, SmartCard, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 145-TFLGA (9x9) |
| Number of I/O | 92 |
| Programmable | Not Verified |
